Classic Foldable Electric Wheelchair
>
|
|
| Place of Origin | Changshu, Jiangsu |
| Brand Name | PingFang |
| Certification | CE, ISO13485 |
| Model Number | DYN30A (D07) |

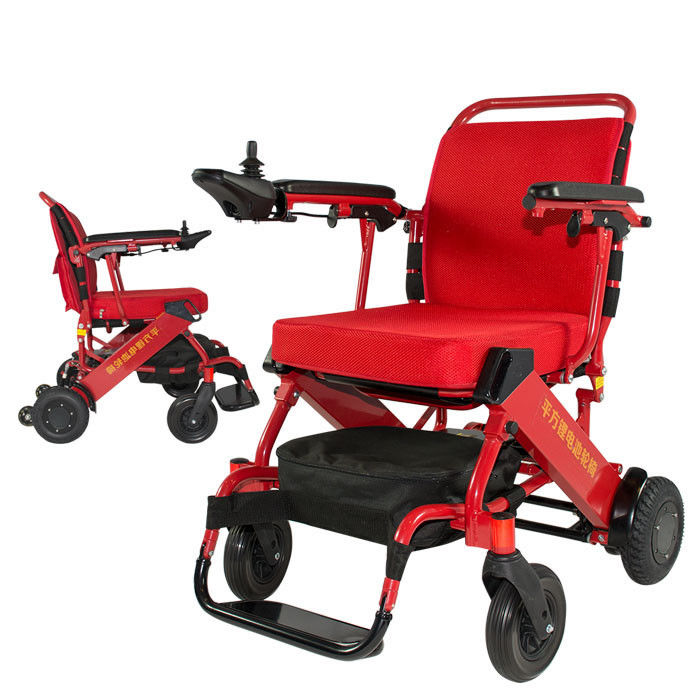

Lightweight Aluminum Handicapped Foldable Power Electric Wheelchair
Model DYN30A (D07)
Description
Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.
The product specifications you cared most
| Model Number | DYN30A (D07) | Type | Elecctric Wheelchair |
| Net Weight | 18 KG / 39.68 lbs | Battery Weight | 1.5 KG / 3.31 lbs |
| Distance | 15KM/ 9.3mi Or 30KM/18.64mi | Maximun Speed | 6KM/H |
| Load Capacity | 100kg/220lb | Charge Time | 5h |
| Battery Capacity | 24V 8AH Or 24V 16AH | Motor | 150W *2 brushless motor |
| Unfolded(LxWxH) size | 87.5x57x87.5cm | Seat Size | 40*44*6cm |
| Folded Size | 57*29*69cm | Packing Dimension | 65*36*77cm |
| Front Wheel | 7”*2 PU Tyre or 8”*2 Pneumatic tyres |
Rear Wheel | 8” Rubber wheel filled with PU |
| Joystick | Left, Right or Backrest***** | Cushion | Removable |
| Charger Input | 100-240 VAC 50/60Hz | Grade Ability | 10° |
| Anti-tip device | Yes | Seat Belt | Yes |
| Tools | Yes | Flip-up Armrest | Yes |
| Battery type | Lithium Ion Battery | Color | Yellow, Black, Red, Silver**** |
*Error and uncertainty in measurement
Packaging
| Individual Package Weight | 25kg/55lb | # of PCS /Master Carton | 1pc |
| Individual Package Dimension (L*W*H) | 65*36*77cm | # of 20'' container | 162pcs |
| Packing | Carton All sides of the interior are protected by pearl cotton | # of 40'' container | 324pcs |
*Error and uncertainty in measurement
Every product must go through a series of rigorous process flow, to ensure the accuracy of product processing.we have created a highly efficient assembly line. Our skilled master assemble delicate accessories into a high quality wheelchair. Each production process,we have professional quality control to make sure the product quality qualified,we have done rigorous test for each performance index.If you want to know more information of our wheelchairs,please feel free to contact us.
Security
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
