Portable Foldable Electric Wheelchair
>
|
| Place of Origin | Changshu Jiangsu |
| Brand Name | Pingfang |
| Certification | CE ISO13485 |
| Model Number | DYN30F (D07F） |

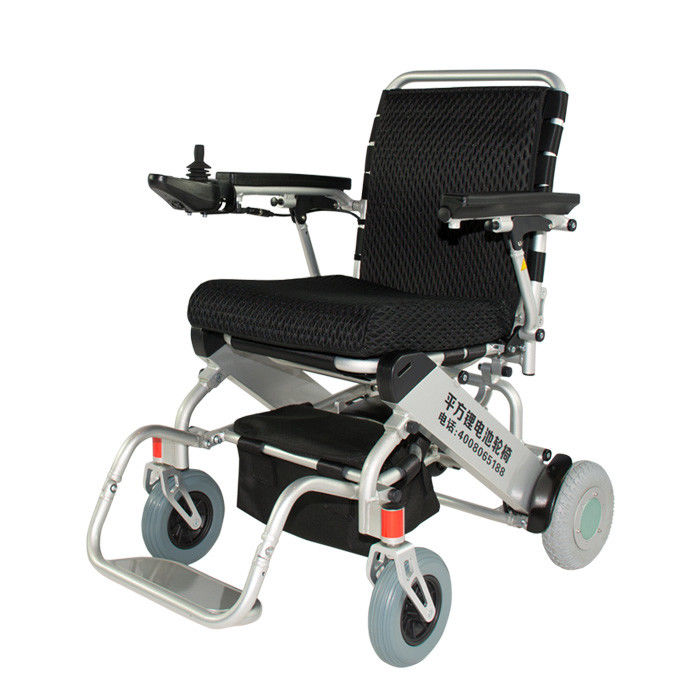

Aluminum Alloy Portable Foldable Electric Wheelchair With Lithium Ion Battery
Model: DYN30F (D07F)
Don't let your legs stop you from going far!!
Description
Electric wheelchair users are the elderly and disabled.Especially the elderly with the growth of age, the body gradually degradation of various functions, legs and feet are not flexible, walking stability is poor, using the hands to push the wheelchair or need family members to carry out, they have been powerless.
Therefore, choose a high-quality electric wheelchair can be driven their own, to increase the range of activities, improve the ability to take care of themselves.No longer dependent on the family for implementation.
The product specifications you cared most
| Net Weight with 1 standard battery pack | 20.5kg (45 lbs) |
| Max Speed | 6.5 km/hr (4 miles/hr) |
| Maximum Seat Capacity | 100kg (220 lbs) |
| Seat Width | 45cm (17.7”) between armrests |
| Seat Depth | 42cm (16.5”) |
| Seat Height From Ground (Front) | 49cm (19.3”) |
| Seat Height From Ground (Back) | 47cm (18.5”) |
| Turning Radius | 75cm (29.5”) |
| Folded Size L X H X W | 30cm x 71cm x 60cm (11.8” X 28” X 23.6”) |
| Opened Size | 91cm x 88.5cm x 59cm (35.8” X 34.8” X 23.3”) |
| Packing Size | 35cm x 78cm x 64cm (13.8” X 30.7” X 25.2”) |
| Max Distance / Full Charge | ~15km with 1 battery (15% less in cold weather) ~30km with Optional 2nd batttery |
| Charge Time (for 1 battery) | 4 hours |
| Slope Capability | 13˚ |
| Battery Type | Soft Pack Polymer Lithium Ion Battery |
| Motor Type | Latest Brushless Motor |
| Motor Power | 150W x 2 |
| Front Wheel | 7” |
| Rear Wheel | 8” |
| Frame Material | Quality Aluminium Alloy |
| Rear Tire Type | Rigid PU tyre |
| Armrest | Raisable |
| Footrest | Foldable |
| Backrest | Foldable |
*Error and uncertainty in measurement
Applicable people
Product Advantage
1. Raisable armrest - Convenient close to the table for eating or reading & Up and down the wheelchair.
2. Foldable footrest - Convenient for Up and down the wheelchair.
3. Foldable frame - Convenient for transportation and stock.
4. Brushless Motor - Enough power, little wear, little noise, low maintenance rate.
5. Lithium Ion Battery - Quick-release battery, light weight, convenient to carrying and charging.
6. Electromagnetic braking system - Safe and easy to operate, release joystick handle means brake. It is safer not to slide up the slope.
7. Easy to operate - Operation depends on the joystick handle. The front, back ,left and right of the control handle represent the direction of the wheelchair. The wheelchair can turn 360 degrees on the spot. Release joystick handle means brake.
