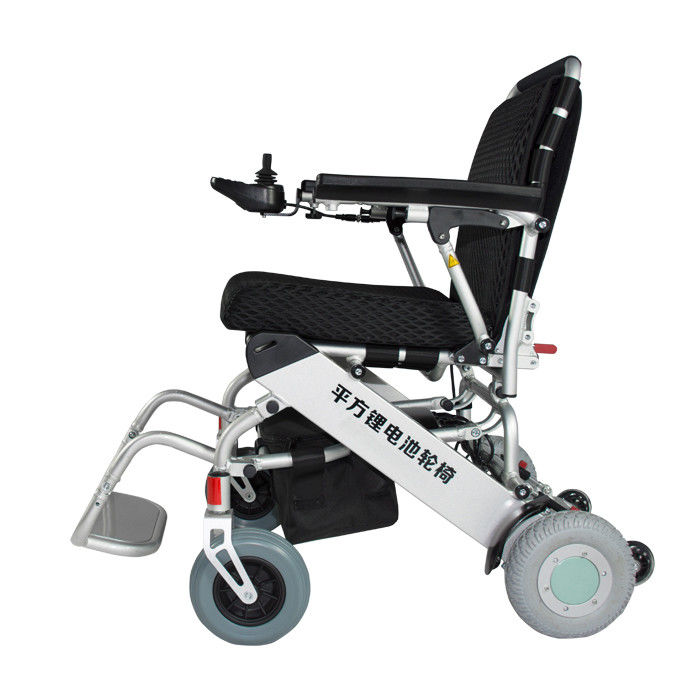

Aluminum Lithium Battery Portable Foldable Electric Wheelchair
Model: DYN30F (D07F)
Description
Folding electric wheelchairs are generally use of lightweight compact lithium battery, designed to be small, unique frame, can be folded into a small convenient storage, so travel by plane, high-speed rail, cruise ships can be carried out, and in the process of transportation connection folding electric wheelchair can play a more useful role.
Traditional electric wheelchairs are too heavy and the batteries are mostly lead-acid, so they cannot be carried on the plane. They are too large or have excessive batteries, which cannot meet the aviation standards. As a result, the elderly cannot carry traditional electric wheelchairs to travel in the plane.
The portable folding electric wheelchair, due to the use of lithium battery design, relatively small and light, the weight is generally 20 kg, the battery capacity is generally designed in the range of aviation standards (The airline says the on-board battery rating cannot exceed 100-160wh, and each person can carry two batteries).
Portable electric wheelchair can be checked on the plane, old people can carry it with them when they travel, to carry off the plane after can directly take the electric wheelchair, after arrive the tourist attractions, can also directly drive electric wheelchair instead of walking, very convenient and the actual needs of old people, also solve the needs of the elderly travel spot, so portable electric wheelchair is worth promoting.
The product specifications you cared most
Net Weight with 1 standard battery pack | 20.5kg (45 lbs) |
Max Speed | 6.5 km/hr (4 miles/hr) |
Maximum Seat Capacity | 100kg (220 lbs) |
Seat Width | 45cm (17.7”) between armrests |
Seat Depth | 42cm (16.5”) |
Seat Height From Ground (Front) | 49cm (19.3”) |
Seat Height From Ground (Back) | 47cm (18.5”) |
Turning Radius | 75cm (29.5”) |
Folded Size L X H X W | 30cm x 71cm x 60cm (11.8” X 28” X 23.6”) |
Opened Size | 91cm x 88.5cm x 59cm (35.8” X 34.8” X 23.3”) |
Packing Size | 35cm x 78cm x 64cm (13.8” X 30.7” X 25.2”) |
Max Distance / Full Charge | ~15km with 1 battery (15% less in cold weather) ~30km with Optional 2nd batttery |
Charge Time (for 1 battery) | 4 hours |
Slope Capability | 13˚ |
Battery Type | Soft Pack Polymer Lithium Ion Battery |
Motor Type | Latest Brushless Motor |
Motor Power | 150W x 2 |
Front Wheel | 7” |
Rear Wheel | 8” |
Frame Material | Quality Aluminium Alloy |
Rear Tire Type | Rigid PU tyre |
Armrest | Raisable |
Footrest | Foldable |
Backrest | Foldable |
*Error and uncertainty in measurement
Product Advantage
1. Light Weiht - Frame can be easily lifted. Convenient for transportation and turnover.
2. Raisable armrest - Convenient close to the table for eating or reading & Up and down the wheelchair.
3. Foldable footrest - Convenient for Up and down the wheelchair.
4. Foldable frame - Convenient for transportation and stock.
5. Brushless Motor - Enough power, little wear, little noise, low maintenance rate.
6. Lithium Ion Battery - Quick-release battery, light weight, convenient to carrying and charging.
7. Electromagnetic braking system - Safe and easy to operate, release joystick handle means brake. It is safer not to slide up the slope.
8. Easy to operate - Operation depends on the joystick handle. The front, back ,left and right of the control handle represent the direction of the wheelchair. The wheelchair can turn 360 degrees on the spot. Release joystick handle means brake.
9.Anti-tip wheel - Anti-tip castor wheels at rear for safe use by customers, especially when crossing obstacles and going up hills to play a good protective role.
Security
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
Our Service
1. Reply your inquiry in 24 working hours.
2. Customized design is available.OEM & ODM are welcomed.
3. Professional engineers & Exclusive and unique solution.
4. Well-trained staffs.
5. Return Policy: For defective goods,please send us the pictures to confirm then we will give you the replacement during warranty period.
6. Warranty :We warrant that this product shall be free from defects in material or workmanship for 2 year from the date of purchase.The warranty of the battery is 18 Months from the date of purchase. The warranty of the motor is 1 year from the date of purchase.This warranty does not apply to any product that has been subject to misuse,abuse,negligence or neglect.Defects caused by tempering ,alterations and /or repairs are not covered by this warranty.
