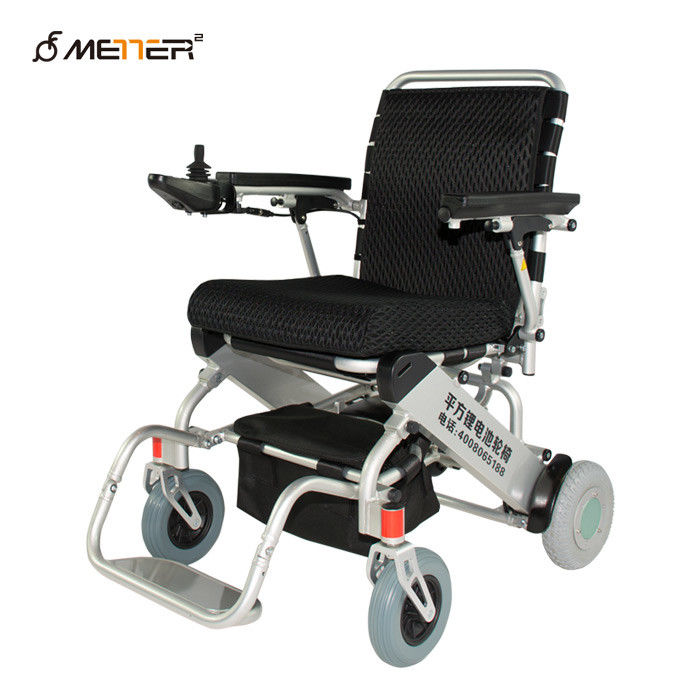

6 Km/H ISO13485 150Wx2 Portable Motorized Wheelchair
  • 6 Km/H ISO13485 150Wx2 Portable Motorized Wheelchair
  • 6 Km/H ISO13485 150Wx2 Portable Motorized Wheelchair
  • 6 Km/H ISO13485 150Wx2 Portable Motorized Wheelchair
  • 6 Km/H ISO13485 150Wx2 Portable Motorized Wheelchair

6 Km/H ISO13485 150Wx2 Portable Motorized Wheelchair

Place of Origin Changshu Jiangsu
Brand Name Pingfang
Certification CE ISO13485
Model Number DYN30F (D07F)
Product Details
Type:
Electric Wheelchair
Material:
Aluminum Alloy
Battery:
Lithium Ion Battery
Controller:
Brushless Controller
Motor:
Brushless Motor 150W*2
Max Speed:
6km/h
Load Capacity:
100 KG / 220.46 Lb
Frame N.W:
18 KG; 39.68 Lb
Folding Way:
Easy Linkage Folding In 3 Seconds
H.S Code:
8713900000
High Light:

4miles hr portable motorized wheelchair

,

4miles hr electric powered wheelchairs

,

ISO13485 portable motorized wheelchair

Product Description

Lightweight Electric Wheel Chair For Handicapped With Brushless Motor 150W*2

Model: DYN30F (D07F)



Description

At present, the elderly choose to travel more and more, take a rip around the world, It is the dream of many old people when they are young. Now They are retired, Make this dream come true while you can still walk. After all, the elderly are not young people, short walks are ok, long distance is not possible, travel. If can have a portable electric wheelchair, that would be much better.





Got off the plane or out of the high-speed rail, directly sit in the electric wheelchair driving their own electric wheelchair, is it a very interesting thing! However, due to the current aviation regulations, many with battery equipment can't carry on a plane, also including some electric wheelchair, only to satisfy the standard of civil aviation battery capacity electric wheelchair is allowed to carry on the plane, so choose a folding electric wheelchair can be on a plane, for many elderly people is very necessary.





Folding electric wheelchairs are generally use of lightweight compact lithium battery, designed to be small, unique frame, can be folded into a small convenient storage, so travel by plane, high-speed rail, cruise ships can be carried out, and in the process of transportation connection folding electric wheelchair can play a more useful role. Traditional electric wheelchairs are too heavy and the batteries are mostly lead-acid, so they cannot be carried on the plane.



The product specifications you cared most

Net Weight with 1 standard battery pack 20.5kg (45 lbs)
Max Speed 6.5 km/hr (4 miles/hr)
Maximum Seat Capacity 100kg (220 lbs)
Seat Width 45cm (17.7”) between armrests
Seat Depth 42cm (16.5”)
Seat Height From Ground (Front) 49cm (19.3”)
Seat Height From Ground (Back) 47cm (18.5”)
Turning Radius 75cm (29.5”)
Folded Size L X H X W 30cm x 71cm x 60cm (11.8” X 28” X 23.6”)
Opened Size 91cm x 88.5cm x 59cm (35.8” X 34.8” X 23.3”)
Packing Size 35cm x 78cm x 64cm (13.8” X 30.7” X 25.2”)
Max Distance / Full Charge ~15km with 1 battery (15% less in cold weather)
~30km with Optional 2nd batttery
Charge Time (for 1 battery) 4 hours
Slope Capability 13˚
Battery Type Soft Pack Polymer Lithium Ion Battery
Motor Type Latest Brushless Motor
Motor Power 150W x 2
Front Wheel 7”
Rear Wheel 8”
Frame Material Quality Aluminium Alloy
Rear Tire Type Rigid PU tyre
Armrest Raisable
Footrest Foldable
Backrest Foldable

*Error and uncertainty in measurement



Our Service
1. Reply your inquiry in 24 working hours.
2. Customized design is available.OEM & ODM are welcomed.
3. Professional engineers & Exclusive and unique solution.
4. Well-trained staffs.
5. Return Policy: For defective goods,please send us the pictures to confirm then we will give you the replacement during warranty period.
6. Warranty :We warrant that this product shall be free from defects in material or workmanship for 2 year from the date of purchase.The warranty of the battery is 18 Months from the date of purchase. The warranty of the motor is 1 year from the date of purchase.This warranty does not apply to any product that has been subject to misuse,abuse,negligence or neglect.Defects caused by tempering ,alterations and /or repairs are not covered by this warranty.

Product Advantage

1. Light Weiht - Frame can be easily lifted. Convenient for transportation and turnover.

2. Raisable armrest - Convenient close to the table for eating or reading & Up and down the wheelchair.

3. Foldable footrest - Convenient for Up and down the wheelchair.

4. Foldable frame - Convenient for transportation and stock.

5. Brushless Motor - Enough power, little wear, little noise, low maintenance rate.

6. Lithium Ion Battery - Quick-release battery, light weight, convenient to carrying and charging.

7. Electromagnetic braking system - Safe and easy to operate, release joystick handle means brake. It is safer not to slide up the slope.

8. Easy to operate - Operation depends on the joystick handle. The front, back ,left and right of the control handle represent the direction of the wheelchair. The wheelchair can turn 360 degrees on the spot. Release joystick handle means brake.

9.Anti-tip wheel - Anti-tip castor wheels at rear for safe use by customers, especially when crossing obstacles and going up hills to play a good protective role.

Security

Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
