Portable Foldable Electric Wheelchair
>
|
| Place of Origin | Changshu Jiangsu |
| Brand Name | Pingfang |
| Certification | CE ISO13485 |
| Model Number | DYN30F (D07F） |

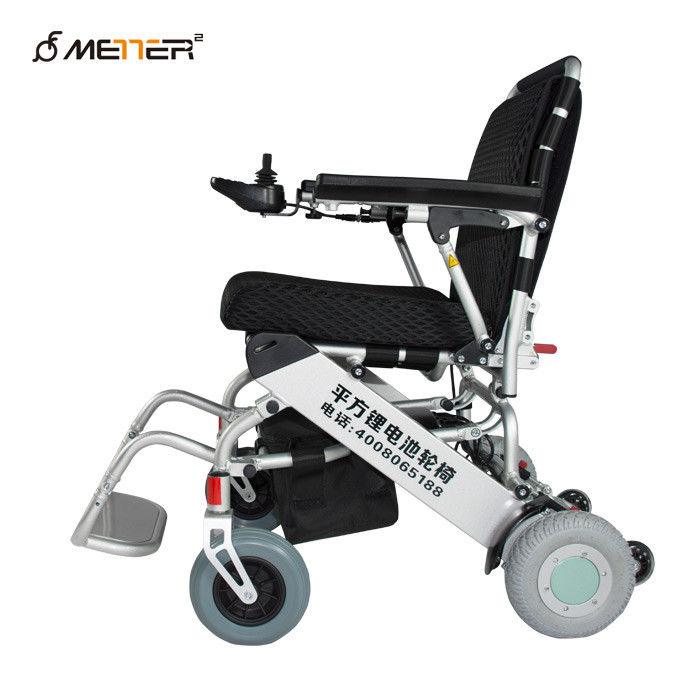

Strong Frame, Patented Design, Lightweight Portable Brushless Folding / Foldable Electric Power Wheelchair
Model: DYN30F (D07F)
Description
Pingfang ultra-light electric wheelchair is exquisite and exquisite, occupying only 0.14m3 after folding, which is convenient for daily storage and carrying. Pingfang ultra-light electric wheelchair is a brand new technology, solar energy low-carbon concept in the electric wheelchair breaking the use of the concept of economic and environmental protection, ultra-light portable design makes this model become one of the world's most lightweight electric wheelchair, in use can be charged at any time. Pingfang ultra light electric wheelchair adopts hub type brushless motor, which can save electricity, save energy, and have a longer driving range, making your trip more comfortable. One-button quick belt folding, income comfortable, operation brief.The use of brushless motor makes the vehicle's energy conversion efficiency greatly improved, and then enhances the range of the vehicle;Aluminum frame, front and back folding structure;Up and down can be turned up type handrails, adjustable before and after the safety of the handle.
The product specifications you cared most
| Net Weight with 1 standard battery pack | 20.5kg (45 lbs) |
| Max Speed | 6.5 km/hr (4 miles/hr) |
| Maximum Seat Capacity | 100kg (220 lbs) |
| Seat Width | 45cm (17.7”) between armrests |
| Seat Depth | 42cm (16.5”) |
| Seat Height From Ground (Front) | 49cm (19.3”) |
| Seat Height From Ground (Back) | 47cm (18.5”) |
| Turning Radius | 75cm (29.5”) |
| Folded Size L X H X W | 30cm x 71cm x 60cm (11.8” X 28” X 23.6”) |
| Opened Size | 91cm x 88.5cm x 59cm (35.8” X 34.8” X 23.3”) |
| Packing Size | 35cm x 78cm x 64cm (13.8” X 30.7” X 25.2”) |
| Max Distance / Full Charge | ~15km with 1 battery (15% less in cold weather) ~30km with Optional 2nd batttery |
| Charge Time (for 1 battery) | 4 hours |
| Slope Capability | 13˚ |
| Battery Type | Soft Pack Polymer Lithium Ion Battery |
| Motor Type | Latest Brushless Motor |
| Motor Power | 150W x 2 |
| Front Wheel | 7” |
| Rear Wheel | 8” |
| Frame Material | Quality Aluminium Alloy |
| Rear Tire Type | Rigid PU tyre |
| Armrest | Raisable |
| Footrest | Foldable |
| Backrest | Foldable |
*Error and uncertainty in measurement
Wheelchair Details
Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
Product Advantage
1. Raisable armrest - Convenient close to the table for eating or reading & Up and down the wheelchair.
2. Foldable footrest - Convenient for Up and down the wheelchair.
3. Foldable frame - Convenient for transportation and stock.
4. Brushless Motor - Enough power, little wear, little noise, low maintenance rate.
5. Lithium Ion Battery - Quick-release battery, light weight, convenient to carrying and charging.
6. Electromagnetic braking system - Safe and easy to operate, release joystick handle means brake. It is safer not to slide up the slope.
7. Easy to operate - Operation depends on the joystick handle. The front, back ,left and right of the control handle represent the direction of the wheelchair. The wheelchair can turn 360 degrees on the spot. Release joystick handle means brake.
