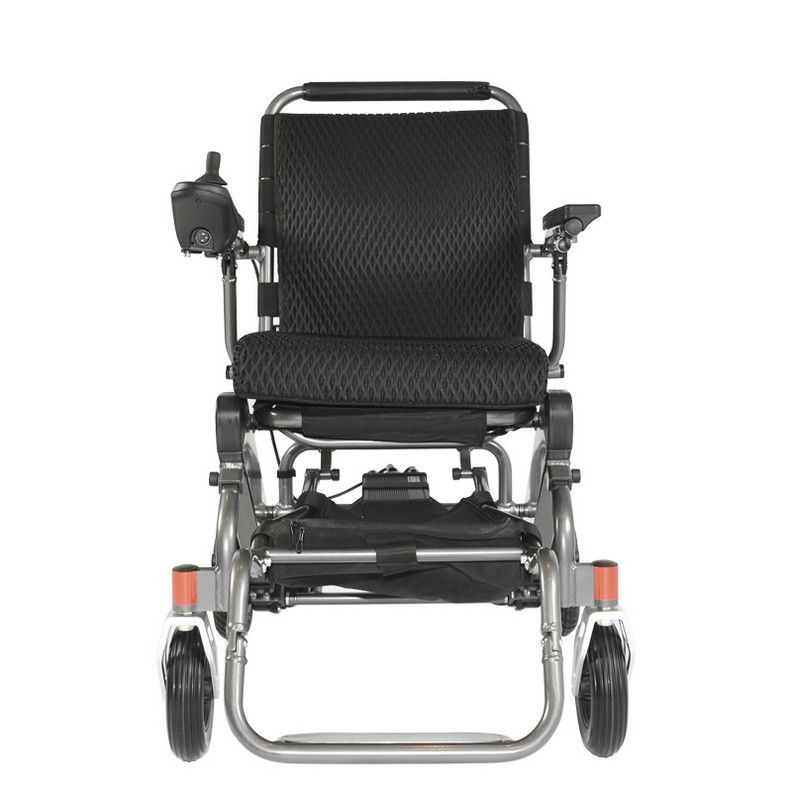

150W*2 Brush Motor Light Foldable Electric Wheelchair with Aluminum Alloy
Model: DYN30F (D07F)
Description
At present, the elderly choose to travel more and more, take a rip around the world, It is the dream of many old people when they are young. Now They are retired, Make this dream come true while you can still walk. After all, the elderly are not young people, short walks are ok, long distance is not possible, travel. If can have a portable electric wheelchair, that would be much better. Got off the plane or out of the high-speed rail, directly sit in the electric wheelchair driving their own electric wheelchair, portable foldable electric wheelchair it a very interesting thing! However, due to the current aviation regulations, many with battery equipment can't carry on a plane, also including some electric wheelchair, only to satisfy the standard of civil aviation battery capacity electric wheelchair is allowed to carry on the plane, so choose a folding electric wheelchair can be on a plane, for many elderly people is very necessary.
The product specifications you cared most
Net Weight with 1 standard battery pack | 20.5kg (45 lbs) |
Max Speed | 6.5 km/hr (4 miles/hr) |
Maximum Seat Capacity | 100kg (220 lbs) |
Seat Width | 45cm (17.7”) between armrests |
Seat Depth | 42cm (16.5”) |
Seat Height From Ground (Front) | 49cm (19.3”) |
Seat Height From Ground (Back) | 47cm (18.5”) |
Turning Radius | 75cm (29.5”) |
Folded Size L X H X W | 30cm x 71cm x 60cm (11.8” X 28” X 23.6”) |
Opened Size | 91cm x 88.5cm x 59cm (35.8” X 34.8” X 23.3”) |
Packing Size | 35cm x 78cm x 64cm (13.8” X 30.7” X 25.2”) |
Max Distance / Full Charge | ~15km with 1 battery (15% less in cold weather) ~30km with Optional 2nd batttery |
Charge Time (for 1 battery) | 4 hours |
Slope Capability | 13˚ |
Battery Type | Soft Pack Polymer Lithium Ion Battery |
Motor Type | Latest Brushless Motor |
Motor Power | 150W x 2 |
Front Wheel | 7” |
Rear Wheel | 8” |
Frame Material | Quality Aluminium Alloy |
Rear Tire Type | Rigid PU tyre |
Armrest | Raisable |
Footrest | Foldable |
Backrest | Foldable |
*Error and uncertainty in measurement
A wheelchair that can get on an airplane
With the progress of The Times and the development of science and technology, there are some electric wheelchairs that can get on the plane in the world now. Withits appearance, the travel of elderly parents and disabled people is no longer a dream.Are you curious, a wheelchair that can get on an airplane?What's so special about it?Let me tell you about it.
a. Electric wheelchairs should be transported as checked baggage.
b. Motorized wheelchairs used by sick and disabled passengers during their travels are free of charge and are not included in the free baggage allowance.
c. When the electric wheelchair is consigned, its packaging must meet the following requirements.
1. Wheelchair equipped with leakproof battery, the battery poles must be able to prevent short circuit and the battery has been firmly installed in the wheelchair.
2. Wheelchairs equipped with non-leak-proof batteries must have their batteries removed.Wheelchair can be used as the limit of the checked baggage transport, and unload the battery must be loaded into the following solid hard packing and shipping, the package must be tight not leak, can prevent the battery liquid leakage, fixed with proper way, such as using the binding belt, clamp, or support, should be fixed to the container on board or cargo tanks (Must not be supported by goods or baggage).
" I want to take you to romantic hainan island..." Listen to the song, take your parents, go on a trip together...... With the wheelchair that can get on the plane, the sea is getting closer and closer to us...
Product Advantage
1.Portable foldable electric wheelchair can be easily lifted. Convenient for transportation and turnover.
2. Raisable armrest - Convenient close to the table for eating or reading & Up and down the wheelchair.
3. Foldable footrest - Convenient for Up and down the wheelchair.
4. Foldable frame - Convenient for transportation and stock.
5. Brushless Motor - Enough power, little wear, little noise, low maintenance rate.
6. Lithium Ion Battery - Quick-release battery, light weight, convenient to carrying and charging.
7. Electromagnetic braking system - Safe and easy to operate, release joystick handle means brake. It is safer not to slide up the slope.
8. Easy to operate - Operation depends on the joystick handle. The front, back ,left and right of the control handle represent the direction of the wheelchair. The wheelchair can turn 360 degrees on the spot. Release joystick handle means brake.
9.Anti-tip wheel - Anti-tip castor wheels at rear for safe use by customers, especially when crossing obstacles and going up hills to play a good protective role.
Security
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
Our Service
1. Reply your inquiry in 24 working hours.
2. Customized design is available.OEM & ODM are welcomed.
3. Professional engineers & Exclusive and unique solution.
4. Well-trained staffs.
5. Return Policy: For defective goods,please send us the pictures to confirm then we will give you the replacement during warranty period.
6. Warranty :We warrant that this product shall be free from defects in material or workmanship for 2 year from the date of purchase.The warranty of the battery is 18 Months from the date of purchase. The warranty of the motor is 1 year from the date of purchase.This warranty does not apply to any product that has been subject to misuse,abuse,negligence or neglect.Defects caused by tempering ,alterations and /or repairs are not covered by this warranty.
