Portable Foldable Electric Wheelchair
>
|
| Place of Origin | Changshu Jiangsu |
| Brand Name | Pingfang |
| Certification | CE ISO13485 |
| Model Number | F308 |
Lightweight Portable Carbon Fiber Folding Electric Wheelchair for Disabled
Model:F 308
Description
Our company is committed to providing cost-effective medical products for the elderly and the disabled. The main products are electric wheelchair, manual wheelchair and professional sports wheelchair. So far, our products have been widely recognized in France, Hong Kong China,Malaysia and other countries, and enjoy a high reputation among customers, we are very proud of it.
Electric wheelchair is a kind of travel tool specially designed for the elderly.There are many kinds of electric wheelchair, are generally four-wheel design, so the whole enhanced the balance of the chair, even on bumpy roads or climbing a hill can also exercise is very smooth, there are some electric wheelchair heavier also not convenient fold, and some new design of portable electric wheelchair, often compare light in weight and convenient fold, daily use is more suitable for the elderly.
ith mobility difficulties are no exception. Therefore, portable folding electric wheelchairs are the best companions for this group to brave the world.
Wheelchair Details

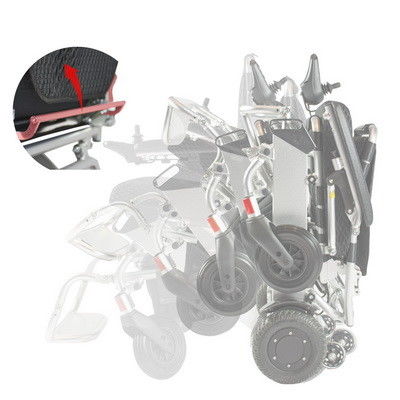

Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
The product specifications you cared most
| Net Weight with 1 standard battery pack | 22kg (48.5 lbs) |
| Max Speed | 6 km/hr (3.7 miles/hr) |
| Maximum Seat Capacity | 100kg (220 lbs) |
| Seat Width | 45cm (17.7”) between armrests |
| Seat Depth | 45cm (17.7”) |
| Seat Height From Ground (Front) | 49cm (19.3”) |
| Seat Height From Ground (Back) | 47cm (18.5”) |
| Turning Radius | 75cm (29.5”) |
| Folded Size L X H X W | 37cm x 71cm x 56.5cm (14.6” X 28” X 22”) |
| Opened Size | 93cm x 87.5cm x 56.5cm (36.7” X 34.4” X 22”) |
| Packing Size | 36.5cm x 78.5cm x 66cm (14.4” X 31” X 26”) |
| Max Distance / Full Charge | ~15km with 1 battery (15% less in cold weather) ~30km with Optional 2nd batttery |
| Charge Time (for 1 battery) | 4.5hours |
| Slope Capability | 10˚ |
| Battery Type | Soft Pack Polymer Lithium Ion Battery |
| Motor Type | Latest Brushless Motor |
| Motor Power | 150W x 2 |
| Front Wheel | 7” |
| Rear Wheel | 8” |
| Frame Material | Quality Aluminium Alloy |
| Rear Tire Type | Rigid PU tyre |
| Armrest | Raisable |
| Footrest | Foldable |
| Backrest | Foldable |
*Error and uncertainty in measurement
Product Advantage
1. Light Weiht - Frame can be easily lifted. Convenient for transportation and turnover.
2. Raisable armrest - Convenient close to the table for eating or reading & Up and down the wheelchair.
3. Foldable footrest - Convenient for Up and down the wheelchair.
4. Foldable frame - Convenient for transportation and stock.
5. Brushless Motor - Enough power, little wear, little noise, low maintenance rate.
6. Lithium Ion Battery - Quick-release battery, light weight, convenient to carrying and charging.
7. Electromagnetic braking system - Safe and easy to operate, release joystick handle means brake. It is safer not to slide up the slope.
8. Easy to operate - Operation depends on the joystick handle. The front, back ,left and right of the control handle represent the direction of the wheelchair. The wheelchair can turn 360 degrees on the spot. Release joystick handle means brake.
9.Anti-tip wheel - Anti-tip castor wheels at rear for safe use by customers, especially when crossing obstacles and going up hills to play a good protective role.
Optional
Headrest
More comfortable neck and head rest for users.
The orthopaedic legrest
Legrest angle and length adjustable, can be easily removable. People who have leg injuries or cannot bend their legs are better able to use wheelchairs. It is also convenient and comfortable for users to rest their legs.
