150W*2 Aluminum Alloy Lightweight Folding Electric Wheelchair ISO13485
  • 150W*2 Aluminum Alloy Lightweight Folding Electric Wheelchair ISO13485
  • 150W*2 Aluminum Alloy Lightweight Folding Electric Wheelchair ISO13485
  • 150W*2 Aluminum Alloy Lightweight Folding Electric Wheelchair ISO13485
  • 150W*2 Aluminum Alloy Lightweight Folding Electric Wheelchair ISO13485

150W*2 Aluminum Alloy Lightweight Folding Electric Wheelchair ISO13485

Place of Origin Changshu Jiangsu
Brand Name Pingfang
Certification CE ISO13485
Model Number F308
Product Details
Motor:
Brushless Motor 150W*2
Material:
Aluminum Alloy
Maximum Speed:
6km/h
Type:
Electric Wheelchair
Function:
Walking Helper For The Disabled Or Elder People
Load Capacity:
100 KG / 220.46 Lb
Applicable People:
Disabled Or Elderly
H.S Code:
8713900000
High Light:

150W*2 Lightweight Folding Electric Wheelchair

,

Lightweight Folding Electric Wheelchair ISO13485

,

150W*2 Collapsible Power Wheelchair

Product Description

China Manufacturer Factory Supplying Lightweight Folding Electric Wheelchair with Aluminum Alloy

Model:F 308



Description

​The chair is controlled with an easy-to-uick thse joystat can be placed on either the left or right hand side depending on the user's preference. It is designed with a 8-inch rear-wheel drive system to overcome tough terrains such as hills and ramps and provides a smooth ride throughout.

The Ultra-Light electric wheelchair can reach maximum speeds of 6 km/h and travel up to maximum 30 km on a fully charged battery. The wheelchair is perfect for domestic and outdoor use such as supermarkets, shopping centres and parks.



Wheelchair Details

Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.

Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.



The product specifications you cared most

Net Weight with 1 standard battery pack 22kg (48.5 lbs)
Max Speed 6 km/hr (3.7 miles/hr)
Maximum Seat Capacity 100kg (220 lbs)
Seat Width 45cm (17.7”) between armrests
Seat Depth 45cm (17.7”)
Seat Height From Ground (Front) 49cm (19.3”)
Seat Height From Ground (Back) 47cm (18.5”)
Turning Radius 75cm (29.5”)
Folded Size L X H X W 37cm x 71cm x 56.5cm (14.6” X 28” X 22”)
Opened Size 93cm x 87.5cm x 56.5cm (36.7” X 34.4” X 22”)
Packing Size 36.5cm x 78.5cm x 66cm (14.4” X 31” X 26”)
Max Distance / Full Charge ~15km with 1 battery (15% less in cold weather)
~30km with Optional 2nd batttery
Charge Time (for 1 battery) 4.5hours
Slope Capability 10˚
Battery Type Soft Pack Polymer Lithium Ion Battery
Motor Type Latest Brushless Motor
Motor Power 150W x 2
Front Wheel 7”
Rear Wheel 8”
Frame Material Quality Aluminium Alloy
Rear Tire Type Rigid PU tyre
Armrest Raisable
Footrest Foldable
Backrest Foldable

*Error and uncertainty in measurement



Advantage

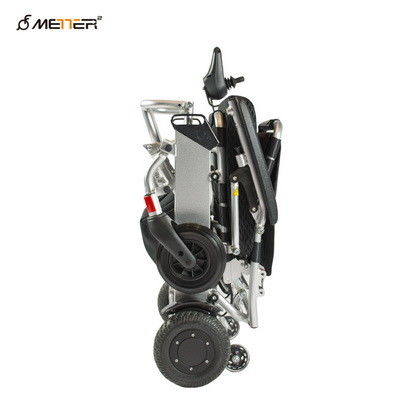

Foldable and Ultra Light

Effortlessly fold in just a few seconds to fit your trunk, closet or anywhere just need small space. The whole Frame N.W just 18 kg.

Flip-up Armrest

Power wheelchair with flip up armrest. It is very convenient for users to get up and down the wheelchair, and the armrest can be lifted when approaching the table.

Comfortable

Use breathable cushion comfortable and can be removable for cleaning. And The tightness of the seat back cushion can be adjusted according to the user's demand. Users will not feel tired after sitting for a long time.

Electrical appliances are highly compatible. The noise of the motor is low, So in the library and other quiet places can be safely used, will not affect others.

Security

Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.



Regulations of the civil aviation administration of China

According to the regulations of the civil aviation administration of China on strengthening the management of safe air transport of lithium batteries, the lithium content/energy limit of the following levels shall be imposed on the batteries or spare batteries in the equipment carried by passengers,

1. Lithium metal batteries contain no more than 2g of lithium.

2. Lithium ion battery rated energy does not exceed 100wh.

3. Those exceeding 100wh but not exceeding 160wh must be approved by the airline before they can be loaded on the equipment of checked and transported baggage or hand baggage.

4. The new standard has one obvious difference from the past: lithium content is used as the standard of measurement for lithium metal battery, and lithium energy (unit: watt-hour) is used as the standard of measurement for lithium ion battery.

Currently, lithium-ion batteries used in portable electronics or portable power supplies are typically only labeled with the capacity in milliampere-hours (mAh), which is converted from capacity to energy. When the battery is known of the nominal voltage ( V ) and nominal capacity (Ah), energy can be calculated by numerical: wh = V * Ah, nominal voltage (3.6 V or 3.7 V) and nominal capacity are identified on the cell body, if the nominal capacity of battery unit is the mAh, can be divided by 1000 with the mAh value namely Ah (ampere hour).

For example, a certain type of electric wheelchair has two lithium batteries, 12V 10AH * 2, so the energy quantity is: 12V*10AH=120WH. According to the regulations, 120WH lithium batteries are allowed to be carried into the plane.(lithium batteries over 160WH are not allowed on board).
