Portable Foldable Electric Wheelchair
>
|
| Place of Origin | Changshu Jiangsu |
| Brand Name | Pingfang |
| Certification | CE ISO13485 |
| Model Number | F309 |

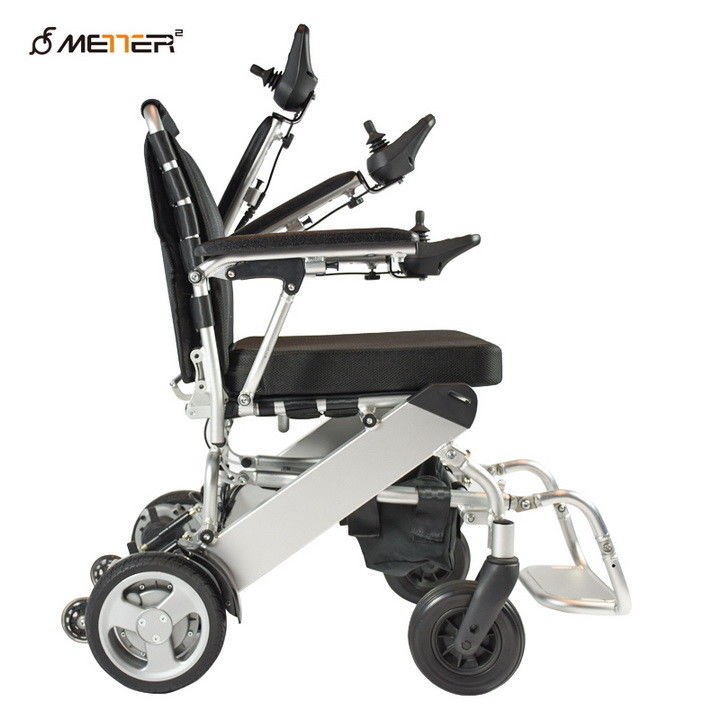

Smart Ultra Light Folding Electric Power Wheelchair with Brushless Controller
Model: F309
Description
Portable foldable electric wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "PF" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. PF wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.
Portable foldable electric wheelchair is a kind of travel tool specially designed for the elderly.There are many kinds of electric wheelchair, are generally four-wheel design, so the whole enhanced the balance of the chair, even on bumpy roads or climbing a hill can also exercise is very smooth, there are some electric wheelchair heavier also not convenient fold, and some new design of portable electric wheelchair, often compare light in weight and convenient fold, daily use is more suitable for the elderly.
Wheelchair Details
Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
The product specifications you cared most
| Net Weight with 1 standard battery pack | 24kg (53 lbs) |
| Max Speed | 6 km/hr (3.7 miles/hr) |
| Maximum Seat Capacity | 100kg (220 lbs) |
| Seat Width | 48cm (19”) between armrests |
| Seat Depth | 450cm (17.7”) |
| Seat Height From Ground (Front) | 49cm (19.3”) |
| Seat Height From Ground (Back) | 47cm (18.5”) |
| Turning Radius | 75cm (29.5”) |
| Folded Size L X H X W | 35cm x 73cm x 58cm (13.8” X 28.7” X22.8”) |
| Opened Size | 94cm x 90cm x 58cm (37” X 35.4” X22.8”) |
| Packing Size | 36.5cm x 78.5cm x 66cm (14.4” X 30.9” X 26”) |
| Max Distance / Full Charge | ~18km with 1 battery (15% less in cold weather) ~36km with Optional 2nd batttery |
| Charge Time (for 1 battery) | 4 hours |
| Slope Capability | 10˚ |
| Battery Type | Soft Pack Polymer Lithium Ion Battery |
| Motor Type | Latest Brushless Motor |
| Motor Power | 180W x 2 |
| Front Wheel | 7” |
| Rear Wheel | 9” |
| Frame Material | Quality Aluminium Alloy |
| Rear Tire Type | Rigid PU tyre |
| Armrest | Raisable |
| Footrest | Foldable |
| Backrest | Foldable |
*Error and uncertainty in measurement
Service
1. We are wheelchair factory so our price will be the most competitive
2. We have profession engineer teams so our products ensure high quality and safety
3. We has integrated research and development and sales team so we will solve problems in 24 hrs
4. We accept customized LOGO and mass printing
