220.46lb Load Disabled Collapsible Mobility Electric Wheelchairs
  • 220.46lb Load Disabled Collapsible Mobility Electric Wheelchairs
  • 220.46lb Load Disabled Collapsible Mobility Electric Wheelchairs
  • 220.46lb Load Disabled Collapsible Mobility Electric Wheelchairs
  • 220.46lb Load Disabled Collapsible Mobility Electric Wheelchairs

220.46lb Load Disabled Collapsible Mobility Electric Wheelchairs

Place of Origin Changshu Jiangsu
Brand Name Pingfang
Certification CE ISO13485
Model Number F308
Product Details
Motor:
Brushless Motor 150W*2
Material:
Aluminum Alloy
Maximum Speed:
6km/h
Type:
Electric Wheelchair
Function:
Walking Helper For The Disabled Or Elder People
Load Capacity:
100 KG / 220.46 Lb
Applicable People:
Disabled Or Elderly
H.S Code:
8713900000
High Light:

Collapsible Mobility Electric Wheelchairs

,

220.46lb Load Mobility Electric Wheelchairs

,

Disabled Collapsible Electric Wheelchair

Product Description

Disabled Medical Equipment Mobility Motorized Foldable Power Electric Wheelchair

Model:F 308



Description

We are Changshu Pingfang Wheelchair Co., Ltd. We are wheelchair manufacturer. We mainly produce light weight and can folding very small electric wheelchair. We have a professional design team, procurement team, production team, sales team and after-sales team.
Our Electric wheelchair all with quick-release lithium batteries, brushless motor, brushless controller, foldable small, lightweight. Take you wherever you want to go. Easy to store and transport. You can use it by car, subway, high-speed rail, airplane or any other means of transportation. It can be used in supermarkets, parks, elevators, anywhere. It can be stored in the trunk of a car, in a locker, or in any small space.
We also have many optional accessorie for meet the different needs of different customers. Functions not only can be met at any time, but also can be combined according to customer requirements.



The product specifications you cared most

Net Weight with 1 standard battery pack 22kg (48.5 lbs)
Max Speed 6 km/hr (3.7 miles/hr)
Maximum Seat Capacity 100kg (220 lbs)
Seat Width 45cm (17.7”) between armrests
Seat Depth 45cm (17.7”)
Seat Height From Ground (Front) 49cm (19.3”)
Seat Height From Ground (Back) 47cm (18.5”)
Turning Radius 75cm (29.5”)
Folded Size L X H X W 37cm x 71cm x 56.5cm (14.6” X 28” X 22”)
Opened Size 93cm x 87.5cm x 56.5cm (36.7” X 34.4” X 22”)
Packing Size 36.5cm x 78.5cm x 66cm (14.4” X 31” X 26”)
Max Distance / Full Charge ~15km with 1 battery (15% less in cold weather)
~30km with Optional 2nd batttery
Charge Time (for 1 battery) 4.5hours
Slope Capability 10˚
Battery Type Soft Pack Polymer Lithium Ion Battery
Motor Type Latest Brushless Motor
Motor Power 150W x 2
Front Wheel 7”
Rear Wheel 8”
Frame Material Quality Aluminium Alloy
Rear Tire Type Rigid PU tyre
Armrest Raisable
Footrest Foldable
Backrest Foldable

* Error and uncertainty in measurement



Wheelchair Details

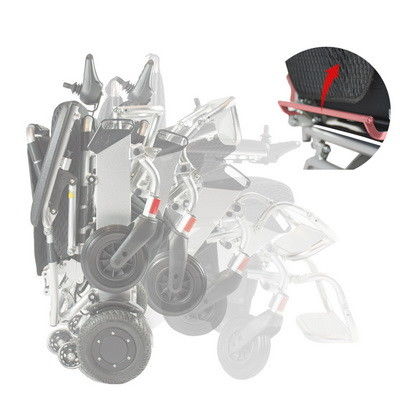

Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.

Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.



Our Service
1. Reply your inquiry in 24 working hours.
2. Customized design is available.OEM & ODM are welcomed.
3. Professional engineers & Exclusive and unique solution.
4. Well-trained staffs.
5. Return Policy: For defective goods,please send us the pictures to confirm then we will give you the replacement during warranty period.
6. Warranty :We warrant that this product shall be free from defects in material or workmanship for 2 year from the date of purchase.The warranty of the battery is 18 Months from the date of purchase. The warranty of the motor is 1 year from the date of purchase.This warranty does not apply to any product that has been subject to misuse,abuse,negligence or neglect.Defects caused by tempering ,alterations and /or repairs are not covered by this warranty.





To our valuable customer:

1) Tell us your idea and we will develop the new products for you, and will improve the currently products function, we have strong ability on this and doing the same in our domestic market.
2) Customization(OEM)for our main products is accepted -- Our factory have theQualified Designer team. They can design according to your drawing or pictures,and produce the sample for your checking before order. Please kindly contact our sales staff for quotation.
3) If you find any spare parts are missing or some damaged when un package, we will deliver the new parts with your coming containers or orders.
4) For checking the products quality --- you are warmly welcomed to visit our factory showroom to check the quality before order. Before loading, you can also send QC to check the goods. Or we will check the goods and send photos for your reference.
5) You can order our products together by combined our all products series, and don't hesitate to contact us for any further information.
6) Lead time: Within 30 days for 1*40HQ after receiving deposit. If we have stock and your order quantity is small, we can send it to you right away.
7) For damaged and missing items, we will send replacement after getting related details, such as photo or video. 8) Sample is available for customer to check the quality. Pay the sample fee, refundable after orders.
