Lightweight Aluminum Handicapped Foldable Power Electric Wheelchair
Model: F309
Portable foldable electric wheelchair is a brand new technology, solar energy low-carbon concept in the electric wheelchair breaking the use of the concept of economic and environmental protection, ultra-light portable design makes this model become one of the world's most lightweight electric wheelchair, in use can be charged at any time.
The world is so big, want to see.The elderly and disabled with mobility difficulties are no exception. Therefore, portable folding electric wheelchairs are the best companions for this group to brave the world.
Aluminum Portable Foldable Power Electric Wheelchair could make it easier for people with physical disabilities or the elderly to travel the trip. Make yourself more self-reliant, free and confident, electric wheelchair can bring you a better life.

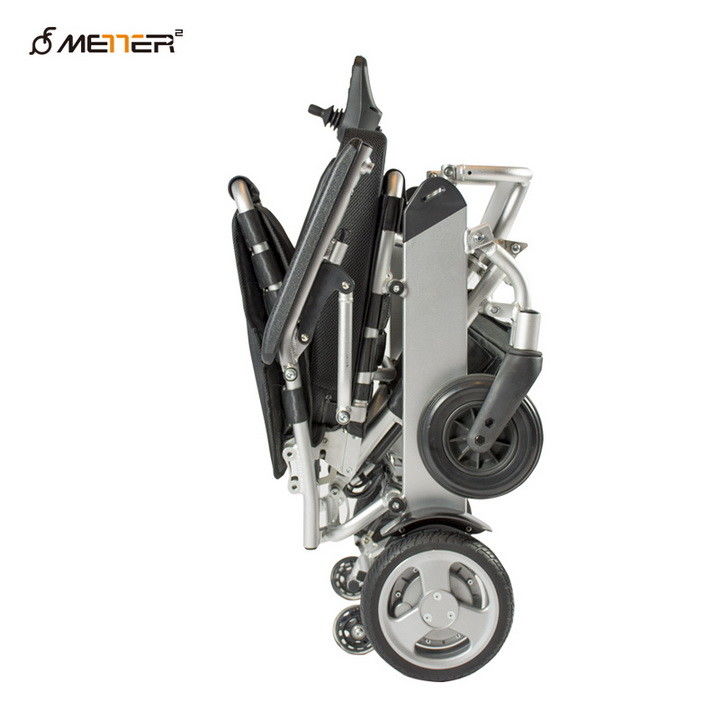

Portable foldable electric wheelchaircan be folded down into a compact package in a matter of seconds. This combined with the light weight, makes it ideal for transporting in cars, airplanes and other forms of transport.
Wheelchair Details
Portable foldable electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
The product specifications you cared most
Net Weight with 1 standard battery pack | 24kg (53 lbs) |
Max Speed | 6 km/hr (3.7 miles/hr) |
Maximum Seat Capacity | 100kg (220 lbs) |
Seat Width | 48cm (19”) between armrests |
Seat Depth | 450cm (17.7”) |
Seat Height From Ground (Front) | 49cm (19.3”) |
Seat Height From Ground (Back) | 47cm (18.5”) |
Turning Radius | 75cm (29.5”) |
Folded Size L X H X W | 35cm x 73cm x 58cm (13.8” X 28.7” X22.8”) |
Opened Size | 94cm x 90cm x 58cm (37” X 35.4” X22.8”) |
Packing Size | 36.5cm x 78.5cm x 66cm (14.4” X 30.9” X 26”) |
Max Distance / Full Charge | ~18km with 1 battery (15% less in cold weather) ~36km with Optional 2nd batttery |
Charge Time (for 1 battery) | 4 hours |
Slope Capability | 10˚ |
Battery Type | Soft Pack Polymer Lithium Ion Battery |
Motor Type | Latest Brushless Motor |
Motor Power | 180W x 2 |
Front Wheel | 7” |
Rear Wheel | 9” |
Frame Material | Quality Aluminium Alloy |
Rear Tire Type | Rigid PU tyre |
Armrest | Raisable |
Footrest | Foldable |
Backrest | Foldable |
* Error and uncertainty in measurement
Our Service
1. Reply your inquiry in 24 working hours.
2. Customized design is available.OEM & ODM are welcomed.
3. Professional engineers & Exclusive and unique solution.
4. Well-trained staffs.
5. Return Policy: For defective goods,please send us the pictures to confirm then we will give you the replacement during warranty period.
6. Warranty :We warrant that this product shall be free from defects in material or workmanship for 2 year from the date of purchase.The warranty of the battery is 18 Months from the date of purchase. The warranty of the motor is 1 year from the date of purchase.This warranty does not apply to any product that has been subject to misuse,abuse,negligence or neglect.Defects caused by tempering ,alterations and /or repairs are not covered by this warranty.
To our valuable customer:
1) Tell us your idea and we will develop the new products for you, and will improve the currently products function, we have strong ability on this and doing the same in our domestic market.
2) Customization(OEM)for our main products is accepted -- Our factory have theQualified Designer team. They can design according to your drawing or pictures,and produce the sample for your checking before order. Please kindly contact our sales staff for quotation.
3) If you find any spare parts are missing or some damaged when un package, we will deliver the new parts with your coming containers or orders.
4) For checking the products quality --- you are warmly welcomed to visit our factory showroom to check the quality before order. Before loading, you can also send QC to check the goods. Or we will check the goods and send photos for your reference.
5) You can order our products together by combined our all products series, and don't hesitate to contact us for any further information.
6) Lead time: Within 30 days for 1*40HQ after receiving deposit. If we have stock and your order quantity is small, we can send it to you right away.
7) For damaged and missing items, we will send replacement after getting related details, such as photo or video. 8) Sample is available for customer to check the quality. Pay the sample fee, refundable after orders.
