Folding 6Km/H Lightweight Motorized Wheelchair 100kg Load
  • Folding 6Km/H Lightweight Motorized Wheelchair 100kg Load
  • Folding 6Km/H Lightweight Motorized Wheelchair 100kg Load
  • Folding 6Km/H Lightweight Motorized Wheelchair 100kg Load
  • Folding 6Km/H Lightweight Motorized Wheelchair 100kg Load

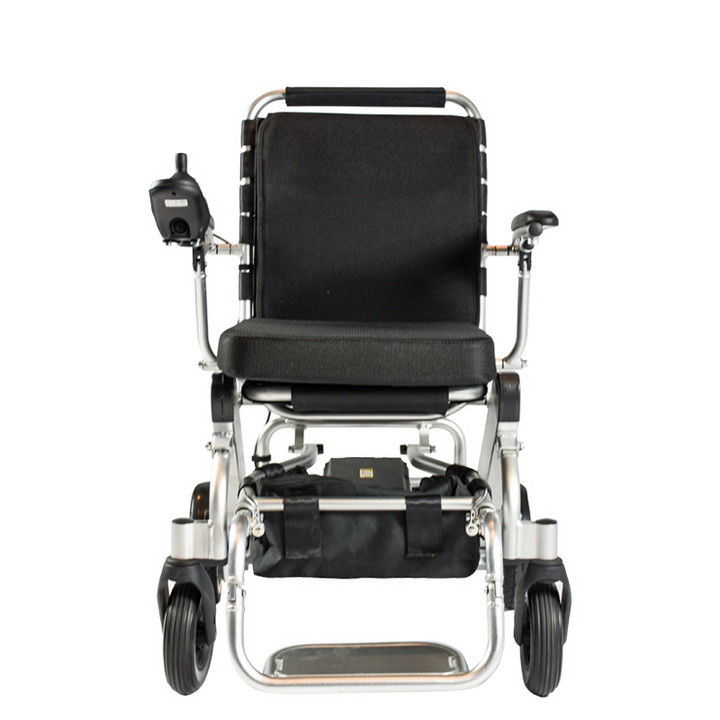

Folding 6Km/H Lightweight Motorized Wheelchair 100kg Load

Place of Origin Changshu Jiangsu
Brand Name Pingfang
Certification CE ISO13485
Model Number F309
Product Details
Type:
Electric Wheelchair
Material:
Aluminum Alloy
Controller:
Brushless Controller
Battery:
Lithium Ion Battery
Applicable People:
Disabled Or Elderly
Motor:
Brushless Motor 180W*2
Maximum Speed:
6km/h
H.S Code:
8713900000
MOQ:
10 Pcs
High Light:

100kg Load Lightweight Motorized Wheelchair

,

Folding Lightweight Motorized Wheelchair

,

Foldable Electric Wheelchair 6Km/H

Product Description

Lightweight Mobility Motorized Folding Electric Wheelchair Power Wheelchair

Model: F309



Description

Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.



Every product must go through a series of rigorous process flow, to ensure the accuracy of product processing.we have created a highly efficient assembly line. Our skilled master assemble delicate accessories into a high quality wheelchair. Each production process,we have professional quality control to make sure the product quality qualified,we have done rigorous test for each performance index.If you want to know more information of our wheelchairs,please feel free to contact us.



The product specifications you cared most

Net Weight with 1 standard battery pack 24kg (53 lbs)
Max Speed 6 km/hr (3.7 miles/hr)
Maximum Seat Capacity 100kg (220 lbs)
Seat Width 48cm (19”) between armrests
Seat Depth 450cm (17.7”)
Seat Height From Ground (Front) 49cm (19.3”)
Seat Height From Ground (Back) 47cm (18.5”)
Turning Radius 75cm (29.5”)
Folded Size L X H X W 35cm x 73cm x 58cm (13.8” X 28.7” X22.8”)
Opened Size 94cm x 90cm x 58cm (37” X 35.4” X22.8”)
Packing Size 36.5cm x 78.5cm x 66cm (14.4” X 30.9” X 26”)
Max Distance / Full Charge ~18km with 1 battery (15% less in cold weather)
~36km with Optional 2nd batttery
Charge Time (for 1 battery) 4 hours
Slope Capability 10˚
Battery Type Soft Pack Polymer Lithium Ion Battery
Motor Type Latest Brushless Motor
Motor Power 180W x 2
Front Wheel 7”
Rear Wheel 9”
Frame Material Quality Aluminium Alloy
Rear Tire Type Rigid PU tyre
Armrest Raisable
Footrest Foldable
Backrest Foldable

* Error and uncertainty in measurement



Wheelchair Details

Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.

Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.



To our valuable customer

1) Tell us your idea and we will develop the new products for you, and will improve the currently products function, we have strong ability on this and doing the same in our domestic market.
2) Customization(OEM)for our main products is accepted -- Our factory have theQualified Designer team. They can design according to your drawing or pictures,and produce the sample for your checking before order. Please kindly contact our sales staff for quotation.
3) If you find any spare parts are missing or some damaged when un package, we will deliver the new parts with your coming containers or orders.
4) For checking the products quality --- you are warmly welcomed to visit our factory showroom to check the quality before order. Before loading, you can also send QC to check the goods. Or we will check the goods and send photos for your reference.
5) You can order our products together by combined our all products series, and don't hesitate to contact us for any further information.
6) Lead time: Within 30 days for 1*40HQ after receiving deposit. If we have stock and your order quantity is small, we can send it to you right away.
7) For damaged and missing items, we will send replacement after getting related details, such as photo or video. 8) Sample is available for customer to check the quality. Pay the sample fee, refundable after orders.



Thank you!
