Place of Origin | Changshu Jiangsu |
Brand Name | Pingfang |
Certification | CE ISO13485 |
Model Number | F309 |

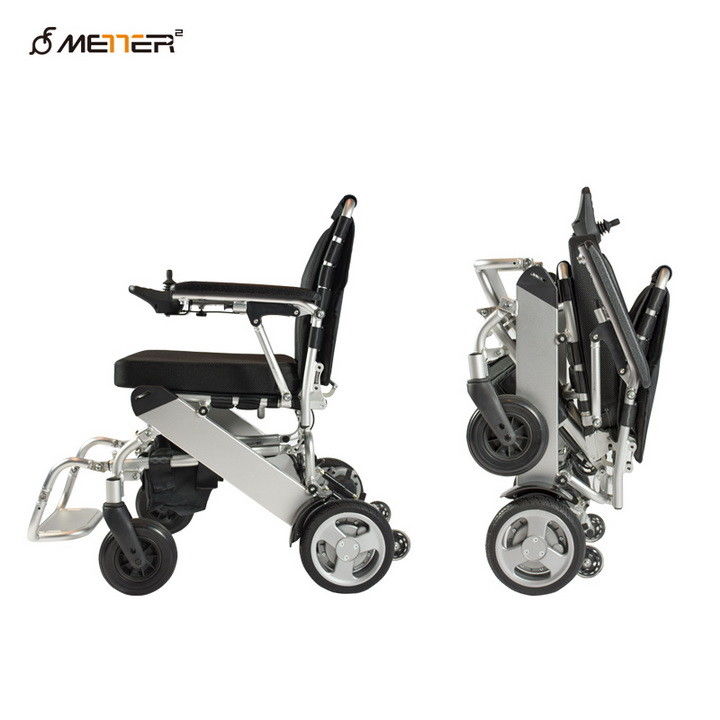

China Manufacturer Factory Supplying Lightweight Folding Electric Wheelchair
Model: F309
Description
Every product must go through a series of rigorous process flow, to ensure the accuracy of product processing.we have created a highly efficient assembly line. Our skilled master assemble delicate accessories into a high quality wheelchair. Each production process,we have professional quality control to make sure the product quality qualified,we have done rigorous test for each performance index.If you want to know more information of our wheelchairs,please feel free to contact us.
The product specifications you cared most
Net Weight with 1 standard battery pack | 24kg (53 lbs) |
Max Speed | 6 km/hr (3.7 miles/hr) |
Maximum Seat Capacity | 100kg (220 lbs) |
Seat Width | 48cm (19”) between armrests |
Seat Depth | 450cm (17.7”) |
Seat Height From Ground (Front) | 49cm (19.3”) |
Seat Height From Ground (Back) | 47cm (18.5”) |
Turning Radius | 75cm (29.5”) |
Folded Size L X H X W | 35cm x 73cm x 58cm (13.8” X 28.7” X22.8”) |
Opened Size | 94cm x 90cm x 58cm (37” X 35.4” X22.8”) |
Packing Size | 36.5cm x 78.5cm x 66cm (14.4” X 30.9” X 26”) |
Max Distance / Full Charge | ~18km with 1 battery (15% less in cold weather) ~36km with Optional 2nd batttery |
Charge Time (for 1 battery) | 4 hours |
Slope Capability | 10˚ |
Battery Type | Soft Pack Polymer Lithium Ion Battery |
Motor Type | Latest Brushless Motor |
Motor Power | 180W x 2 |
Front Wheel | 7” |
Rear Wheel | 9” |
Frame Material | Quality Aluminium Alloy |
Rear Tire Type | Rigid PU tyre |
Armrest | Raisable |
Footrest | Foldable |
Backrest | Foldable |
* Error and uncertainty in measurement
Wheelchair Details
Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
FAQ
Q1: Why Choose PINGFANG Products?
We are one of the professional wheelchair factory here in China,
Best production capability, Best quality control, Best Service,
Q2: How is PINGFANG Products Quality?
We only supply quality products, our manufacturing facilities have received the ISO, CE, recognition, and get FDA certificate for some products .
Every products will inspected to the standard before shipment, and every product has one year warranty period.
Q3: Is the electric wheelchair foldable and portable?
Yes. Our electric wheelchair can be easily folded and unfold in 3 seconds, then it is so easy to put in the trunk of a vehicle, it is very convenient for traveling also.
To our valuable customer
1) Tell us your idea and we will develop the new products for you, and will improve the currently products function, we have strong ability on this and doing the same in our domestic market.
2) Customization(OEM)for our main products is accepted -- Our factory have theQualified Designer team. They can design according to your drawing or pictures,and produce the sample for your checking before order. Please kindly contact our sales staff for quotation.
3) If you find any spare parts are missing or some damaged when un package, we will deliver the new parts with your coming containers or orders.
4) For checking the products quality --- you are warmly welcomed to visit our factory showroom to check the quality before order. Before loading, you can also send QC to check the goods. Or we will check the goods and send photos for your reference.
5) You can order our products together by combined our all products series, and don't hesitate to contact us for any further information.
6) Lead time: Within 30 days for 1*40HQ after receiving deposit. If we have stock and your order quantity is small, we can send it to you right away.
7) For damaged and missing items, we will send replacement after getting related details, such as photo or video. 8) Sample is available for customer to check the quality. Pay the sample fee, refundable after orders.
Thank you!
