Portable Foldable Electric Wheelchair
>
|
| Place of Origin | Changshu Jiangsu |
| Brand Name | Pingfang |
| Certification | CE ISO13485 |
| Model Number | F308 |
Compact Motorized 150W*2 Foldable Power Electric Wheelchair
Model:F 308
Description
Folding electric wheelchairs are generally use of lightweight compact lithium battery, designed to be small, unique frame, can be folded into a small convenient storage, so travel by plane, high-speed rail, cruise ships can be carried out, and in the process of transportation connection folding electric wheelchair can play a more useful role.
The product specifications you cared most
| Net Weight with 1 standard battery pack | 22kg (48.5 lbs) |
| Max Speed | 6 km/hr (3.7 miles/hr) |
| Maximum Seat Capacity | 100kg (220 lbs) |
| Seat Width | 45cm (17.7”) between armrests |
| Seat Depth | 45cm (17.7”) |
| Seat Height From Ground (Front) | 49cm (19.3”) |
| Seat Height From Ground (Back) | 47cm (18.5”) |
| Turning Radius | 75cm (29.5”) |
| Folded Size L X H X W | 37cm x 71cm x 56.5cm (14.6” X 28” X 22”) |
| Opened Size | 93cm x 87.5cm x 56.5cm (36.7” X 34.4” X 22”) |
| Packing Size | 36.5cm x 78.5cm x 66cm (14.4” X 31” X 26”) |
| Max Distance / Full Charge | ~15km with 1 battery (15% less in cold weather) ~30km with Optional 2nd batttery |
| Charge Time (for 1 battery) | 4.5hours |
| Slope Capability | 10˚ |
| Battery Type | Soft Pack Polymer Lithium Ion Battery |
| Motor Type | Latest Brushless Motor |
| Motor Power | 150W x 2 |
| Front Wheel | 7” |
| Rear Wheel | 8” |
| Frame Material | Quality Aluminium Alloy |
| Rear Tire Type | Rigid PU tyre |
| Armrest | Raisable |
| Footrest | Foldable |
| Backrest | Foldable |
*Error and uncertainty in measurement
Wheelchair Details

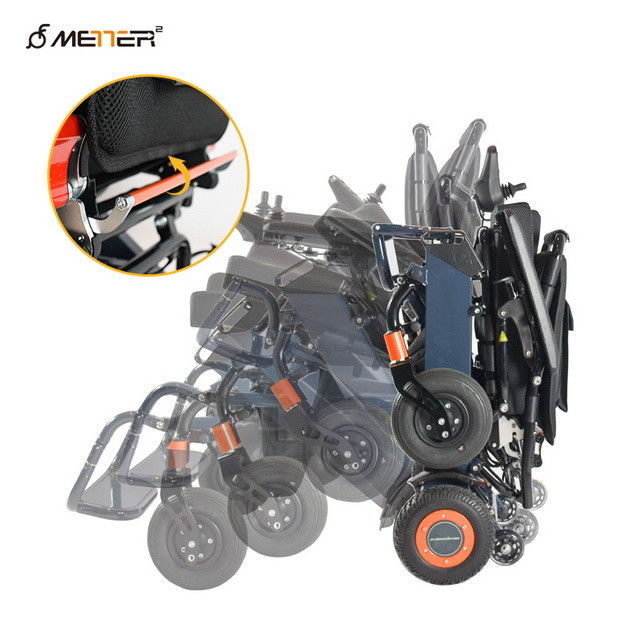

Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
Our Service
1. Reply your inquiry in 24 working hours.
2. Customized design is available.OEM & ODM are welcomed.
3. Professional engineers & Exclusive and unique solution.
4. Well-trained staffs.
5. Return Policy: For defective goods,please send us the pictures to confirm then we will give you the replacement during warranty period.
6. Warranty :We warrant that this product shall be free from defects in material or workmanship for 2 year from the date of purchase.The warranty of the battery is 18 Months from the date of purchase. The warranty of the motor is 1 year from the date of purchase.This warranty does not apply to any product that has been subject to misuse,abuse,negligence or neglect.Defects caused by tempering ,alterations and /or repairs are not covered by this warranty.
