Lithium Battery Folding Wheelchair Lightweight With Brushless Motor
  • Lithium Battery Folding Wheelchair Lightweight With Brushless Motor
  • Lithium Battery Folding Wheelchair Lightweight With Brushless Motor
  • Lithium Battery Folding Wheelchair Lightweight With Brushless Motor
  • Lithium Battery Folding Wheelchair Lightweight With Brushless Motor

Lithium Battery Folding Wheelchair Lightweight With Brushless Motor

Place of Origin Changshu Jiangsu
Brand Name Pingfang
Certification CE ISO13485
Model Number F308
Product Details
Material:
Aluminum Alloy
Motor:
Brushless Motor 150W*2
Maximum Speed:
6km/h
Type:
Electric Wheelchair
Function:
Walking Helper For The Disabled Or Elder People
Load Capacity:
100 KG / 220.46 Lb
Applicable People:
Disabled Or Elderly
H.S Code:
8713900000
High Light:

6km/h Folding Wheelchair

,

Brushless Motor Foldable Wheelchair

,

100KG Load Folding Wheelchair

Product Description

Lightweight Lithium Battery Foldable Power Wheelchair With Brushless Motor

Model:F 308



Description

PF Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "PF" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. PF wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.



Advantage
Adjustable push handles.
Adjustable length joystick to meet different tall person arms.
Joystick can exchange left hand or right hand.
Anti-tip wheels for user's safe.

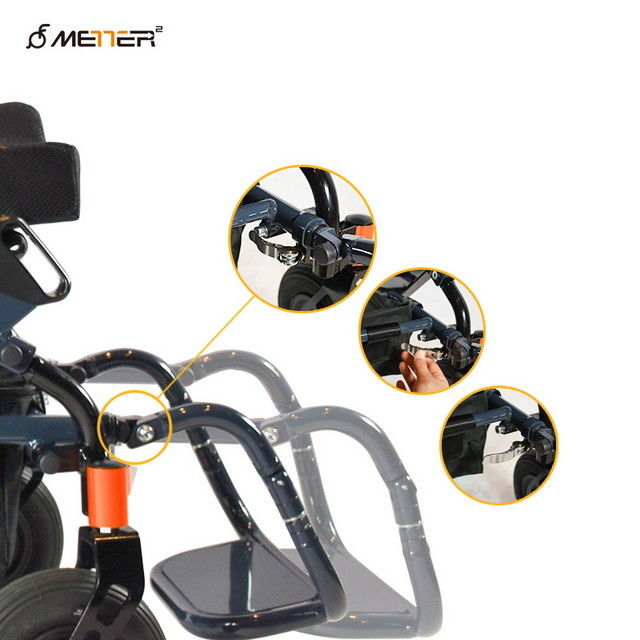

Folded foot pedal.



The product specifications you cared most

Net Weight with 1 standard battery pack 22kg (48.5 lbs)
Max Speed 6 km/hr (3.7 miles/hr)
Maximum Seat Capacity 100kg (220 lbs)
Seat Width 45cm (17.7”) between armrests
Seat Depth 45cm (17.7”)
Seat Height From Ground (Front) 49cm (19.3”)
Seat Height From Ground (Back) 47cm (18.5”)
Turning Radius 75cm (29.5”)
Folded Size L X H X W 37cm x 71cm x 56.5cm (14.6” X 28” X 22”)
Opened Size 93cm x 87.5cm x 56.5cm (36.7” X 34.4” X 22”)
Packing Size 36.5cm x 78.5cm x 66cm (14.4” X 31” X 26”)
Max Distance / Full Charge ~15km with 1 battery (15% less in cold weather)
~30km with Optional 2nd batttery
Charge Time (for 1 battery) 4.5hours
Slope Capability 10˚
Battery Type Soft Pack Polymer Lithium Ion Battery
Motor Type Latest Brushless Motor
Motor Power 150W x 2
Front Wheel 7”
Rear Wheel 8”
Frame Material Quality Aluminium Alloy
Rear Tire Type Rigid PU tyre
Armrest Raisable
Footrest Foldable
Backrest Foldable

*Error and uncertainty in measurement



Wheelchair Details

Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.

Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.



Product Advantage

1. Light Weiht - Frame can be easily lifted. Convenient for transportation and turnover.

2. Raisable armrest - Convenient close to the table for eating or reading & Up and down the wheelchair.

3. Foldable footrest - Convenient for Up and down the wheelchair.

4. Foldable frame - Convenient for transportation and stock.

5. Brushless Motor - Enough power, little wear, little noise, low maintenance rate.

6. Lithium Ion Battery - Quick-release battery, light weight, convenient to carrying and charging.

7. Electromagnetic braking system - Safe and easy to operate, release joystick handle means brake. It is safer not to slide up the slope.

8. Easy to operate - Operation depends on the joystick handle. The front, back ,left and right of the control handle represent the direction of the wheelchair. The wheelchair can turn 360 degrees on the spot. Release joystick handle means brake.

9.Anti-tip wheel - Anti-tip castor wheels at rear for safe use by customers, especially when crossing obstacles and going up hills to play a good protective role.
