Portable Foldable Electric Wheelchair
>
|
| Place of Origin | Changshu, Jiangsu |
| Brand Name | PingFang |
| Certification | CE, ISO13485 |
| Model Number | DYN-309 |

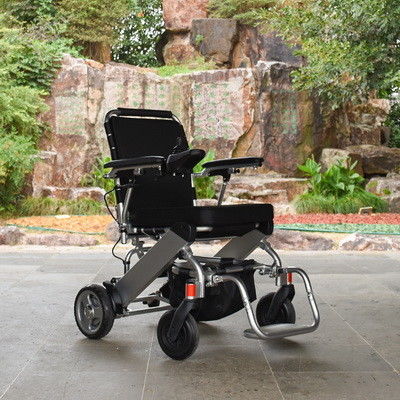

Folding Electric Wheelchair Able To Move Through Any Small Space
Model DYN-309
Description
Every product must go through a series of rigorous process flow, to ensure the accuracy of product processing.we have created a highly efficient assembly line. Our skilled master assemble delicate accessories into a high quality wheelchair. Each production process,we have professional quality control to make sure the product quality qualified,we have done rigorous test for each performance index.If you want to know more information of our wheelchairs,please feel free to contact us.
The product specifications you cared most
| Model Number | DYN309 | Type | Elecctric Wheelchair |
| Net Weight (without Battery) | 18 KG / 39.68 lbs | Battery Weight | 1.5 KG / 3.31 lbs |
| Distance | 18KM/ 11.16mi Or 36KM/22.37mi | Maximun Speed | 6KM/H |
| Load Capacity | 125kg/275.58lb | Charge Time | 4h |
| Battery Capacity | 24V 8AH Or 24V 16AH | Motor | 150W *2 brushless motor |
| Unfolded(LxWxH) size | 960x580x890mm | Seat Size | 400*440*60mm |
| Folded Size | 580*320*730mm | Packing Dimension | 650*360*820mm |
| Front Wheel | 7”*2 PU Tyre or 8”*2 Pneumatic tyres |
Rear Wheel | 9” Rubber wheel filled with PU |
| Joystick | Left, Right or Backrest***** | Cushion | Removable |
| Charger Input | 100-240 VAC 50/60Hz | Grade Ability | 10° |
| Anti-tip device | Yes | Seat Belt | Yes |
| Tools | Yes | Flip-up Armrest | Yes |
| Battery type | Lithium Ion Battery | Color | Yellow, Black, Red, Silver**** |
*Error and uncertainty in measurement
Description
1. 150W brush motor, longer using life with higher energy exchange rate.
2. Easy folding or unfolding, easy to carry as a luggage on plane or on train.
2. Small volume after folding, only 0.17 cbm.
3. Frame material: Light aluminum alloy.
4. 24V18AH removable lithium battery, easy to take and charge.
Our Service
1. Reply your inquiry in 24 working hours.
2. Customized design is available.OEM & ODM are welcomed.
3. Professional engineers & Exclusive and unique solution.
4. Well-trained staffs.
5. Return Policy: For defective goods,please send us the pictures to confirm then we will give you the replacement during warranty period.
6. Warranty :We warrant that this product shall be free from defects in material or workmanship for 2 year from the date of purchase.The warranty of the battery is 18 Months from the date of purchase. The warranty of the motor is 1 year from the date of purchase.This warranty does not apply to any product that has been subject to misuse,abuse,negligence or neglect.Defects caused by tempering ,alterations and /or repairs are not covered by this warranty.
