Multifunction Foldable Electric Wheelchair
>
|
| Place of Origin | Changshu Jiangsu |
| Brand Name | Pingfang |
| Certification | CE ; ISO13485 |
| Model Number | DYN200 ( E08L ) |

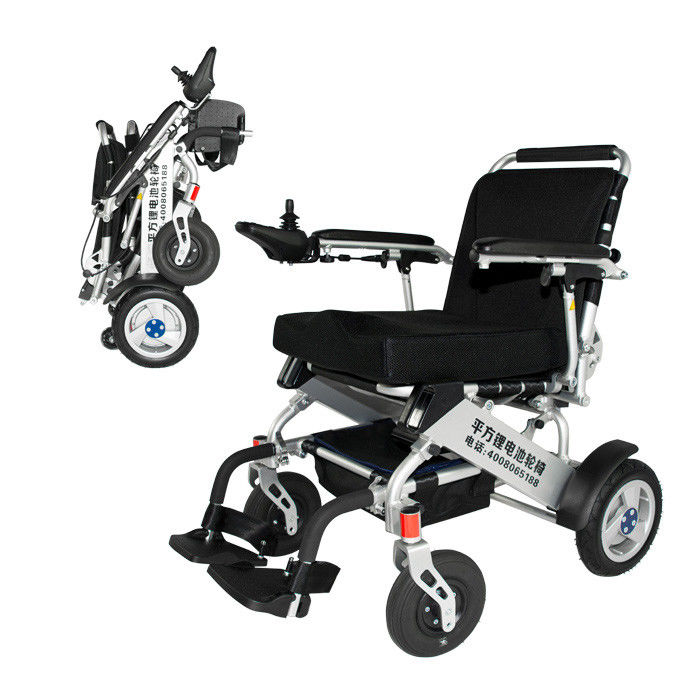

CE Smart Ultra Light Multifunction Folding Electric Power Wheelchair
Model DYN200 ( E08L )
Description
Pingfang DYN200 CE Smart Ultra Light Multifunction Folding Electric Power Wheelchair is controlled with an easy-to-use joystick that can be placed on either the left or right hand side depending on the user's preference. It is designed with a 10-inch rear-wheel drive system to overcome tough terrains such as hills and ramps and provides a smooth ride throughout.
The Ultra-Light electric wheelchair can reach maximum speeds of 6km/h and travel up to 36km on a fully charged battery. The wheelchair is perfect for domestic and outdoor use such as supermarkets, shopping centres and parks.
For additional user safety, we've fitted electromagnetic brakes, emergency brakes and an adjustable seat-belt.
The wheelchair can be also used manually, which makes it easy for use with carers. The powerchair switches between power mode and manual mode with the use of a simple clutch system which is explained in the user manual.
The world is so big, want to see.The elderly and disabled with mobility difficulties are no exception. Therefore, portable folding electric wheelchairs are the best companions for this group to brave the world. Then how to fold portable folding electric wheelchairs?
The front pressure folding way, the portable folding electric wheelchair design is exquisite, when folding only need to release the fixing mechanism, the back of the chair forward pressure and folding wheelchair gently.
Advantage
Aluminum electric wheelchairs can be folded very small to put into the car trunk and other narrow space.
Frame N.W 21.5KG / 47.40lbs.
Battery can be quick-relaese, battery weight is 1.5KG / 3.31lbs.
Backrest can be height adjustable.
Backrest can be 3 position ( 3 different angle ) adjustable.
Seat width can be adjusted in 3 sizes.
Joystick can be right & left adjustable.
Motor wheel can 8 inch and 10 inch adjustable.
Footrest length can length adjustable.
Seatrest & backrest cushion can be degree of tightness adjustable for users more comfortable.
Lithium ion battery can be quick-released (removable without any tools).
Seatrest & backrest cushion can be removable for cleaning.
Footrest can be removable.
The product specifications you cared most
| Model Number | DYN200 ( E08L ) | Type | Elecctric Wheelchair |
| Net Weight | 21.5 KG / 47.40 lbs | Battery Weight | 1.5 KG / 3.31 lbs |
| Distance | 18KM / 11.16mi Or 36KM / 22.32mi | Maximun Speed | 6KM/H |
| Load Capacity | 125kg / 275lb | Charge Time | 5h |
| Battery Capacity | 24V 8AH Or 24V 16AH | Motor | 150W * 2 brushless motor |
| Unfolded(LxWxH) size |
(100-112)x60.5x(81-93)cm / (39.37" - 44.09")*23.82" *(31.89"- 36.61") Length and height can be adjust |
Seat Size |
40 * ( 46 - 50 ) * 6cm / 15.75" * (1 8.11" - 19.69" ) * 2.36" Seat width can be adjustable |
| Folded Size | 60*36.5*71cm / 23.62" *14.37" * 27.95" | Packing Dimension | 67 * 40.5 * 82cm / 26.38" * 15.94" * 32.28" |
| Front Wheel | 7” * 2 PU Tyre or 8” * 2 Pneumatic tyres |
Rear Wheel | 10” Solid Wheel |
| Joystick | Left, Right or Backrest***** | Cushion | Removable |
| Charger Input | 100 - 240 VAC 50 / 60Hz | Grade Ability | 10° |
| Anti-tip device | Yes | Seat Belt | Yes |
| Tools | Yes | Flip-up Armrest | Yes |
| Battery type | Lithium Ion Battery | Color | Silver |
* Error and uncertainty in measurement
Packaging
| Individual Package Weight | 30kg / 66.13lb | # of PCS /Master Carton | 1pc |
| Individual Package Dimension (L*W*H) |
67 * 40.5 * 82 cm / 26.38" * 15.94" * 32.28" |
# of 20'' container | 119pcs |
| Packing | Carton All sides of the interior are protected by pearl cotton | # of 40'' container | 238pcs |
* Error and uncertainty in measurement
Featured
Foldable
Effortlessly fold in just a few seconds to fit your trunk, closet or anywhere just need small space.
Quiet
Electrical appliances are highly compatible. The noise of the motor is low, So in the library and other quiet places can be safely used, will not affect others. Even took part in some calligraphy and painting exhibitions.
Comfortable
Backrest can be 3 angle adjustable, users can rest in the sunshine for a while. Backrest height can be adjustable according to the users' hieght. Footrest length can be adjustable according to users' leg length. There are also many adjustable, removable features for a better user experience.
Security
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
