Multifunction Foldable Electric Wheelchair
>
|
| Place of Origin | Changshu Jiangsu |
| Brand Name | Pingfang |
| Certification | CE ; ISO13485 |
| Model Number | DYN200 ( E08L ) |

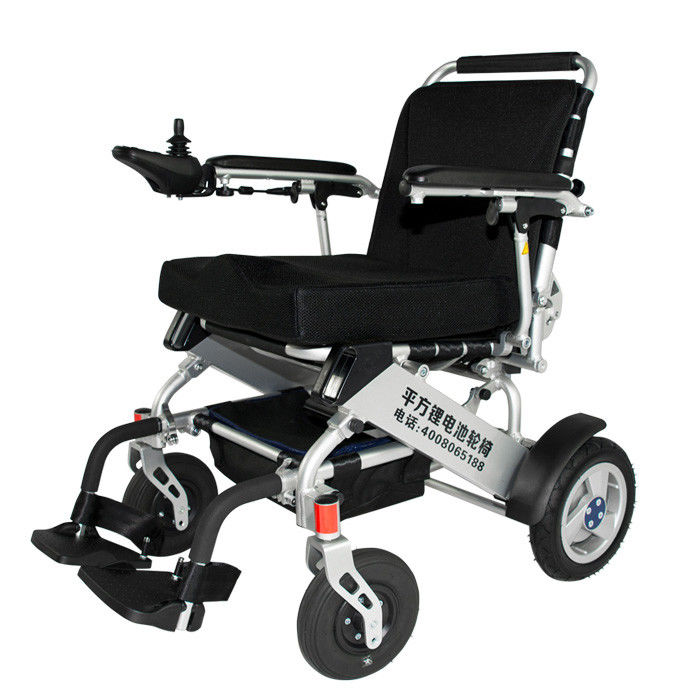

Medical Equipment Light weight Functional Folding Electric Wheel Chair For Disabled
Model DYN200 ( E08L )
Description
Advantage
1. Aluminum electric wheelchairs can be folded very small to put into the car trunk and other narrow space.
2. Frame N.W 21.5KG / 47.40lbs.
3. Battery can be quick-relaese, battery weight is 1.5KG / 3.31lbs.
4. Backrest can be height adjustable.
5. Backrest can be 3 position ( 3 different angle ) adjustable.
6. Seat width can be adjusted in 3 sizes.
7. Joystick can be right & left adjustable.
8. Motor wheel can 8 inch and 10 inch adjustable.
9. Footrest length can length adjustable.
10. Seatrest and backrest cushion can be degree of tightness adjustable for users more comfortable.
11. Lithium ion battery can be quick-released (removable without any tools).
12. Seatrest and backrest cushion can be removable for cleaning.
13. Footrest can be removable.
The product specifications you cared most
| Model Number | DYN200 ( E08L ) | Type | Elecctric Wheelchair |
| Net Weight | 21.5 KG / 47.40 lbs | Battery Weight | 1.5 KG / 3.31 lbs |
| Distance | 18KM / 11.16mi Or 36KM / 22.32mi | Maximun Speed | 6KM/H |
| Load Capacity | 125kg / 275lb | Charge Time | 5h |
| Battery Capacity | 24V 8AH Or 24V 16AH | Motor | 150W * 2 brushless motor |
| Unfolded(LxWxH) size |
(100-112)x60.5x(81-93)cm / (39.37" - 44.09")*23.82" *(31.89"- 36.61") Length and height can be adjust |
Seat Size |
40 * ( 46 - 50 ) * 6cm / 15.75" * (1 8.11" - 19.69" ) * 2.36" Seat width can be adjustable |
| Folded Size | 60*36.5*71cm / 23.62" *14.37" * 27.95" | Packing Dimension | 67 * 40.5 * 82cm / 26.38" * 15.94" * 32.28" |
| Front Wheel | 7” * 2 PU Tyre or 8” * 2 Pneumatic tyres |
Rear Wheel | 10” Solid Wheel |
| Joystick | Left, Right or Backrest***** | Cushion | Removable |
| Charger Input | 100 - 240 VAC 50 / 60Hz | Grade Ability | 10° |
| Anti-tip device | Yes | Seat Belt | Yes |
| Tools | Yes | Flip-up Armrest | Yes |
| Battery type | Lithium Ion Battery | Color | Silver |
* Error and uncertainty in measurement
Packaging
| Individual Package Weight | 30kg / 66.13lb | # of PCS /Master Carton | 1pc |
| Individual Package Dimension (L*W*H) |
67 * 40.5 * 82 cm / 26.38" * 15.94" * 32.28" |
# of 20'' container | 119pcs |
| Packing | Carton All sides of the interior are protected by pearl cotton | # of 40'' container | 238pcs |
* Error and uncertainty in measurement
Featured
Foldable
Effortlessly fold in just a few seconds to fit your trunk, closet or anywhere just need small space.
Quiet
Electrical appliances are highly compatible. The noise of the motor is low, So in the library and other quiet places can be safely used, will not affect others. Even took part in some calligraphy and painting exhibitions.
Comfortable
Backrest can be 3 angle adjustable, users can rest in the sunshine for a while. Backrest height can be adjustable according to the users' hieght. Footrest length can be adjustable according to users' leg length. There are also many adjustable, removable features for a better user experience.
Security
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
Health Hygiene Breathable
The cushion is made of sandwich material with air holes and strong air permeability. The inner lining is filled with high-density sponge. Comfortable without distortion. Easy to disassemble for cleaning and disinfection.
Optional Accessories For Different Requirements
Headrest
Material comfort. Excellent softness and air permeability, and can effectively relieve cervical fatigue during driving.
Orthopaedic Legrest
There is a comfortable spongy-filled shelf at the lower leg. Sponge - filled shelf height is adjustable to suit users of different heights. The Angle of legrest is adjustable and can be adjusted according to the user's comfort level. The length of the legrest can be adjusted according to the length of the user's leg. You can always take it off if you don't want to use it.
Luggage Trailer
It is convenient for users to put luggage or shop in the supermarket.
