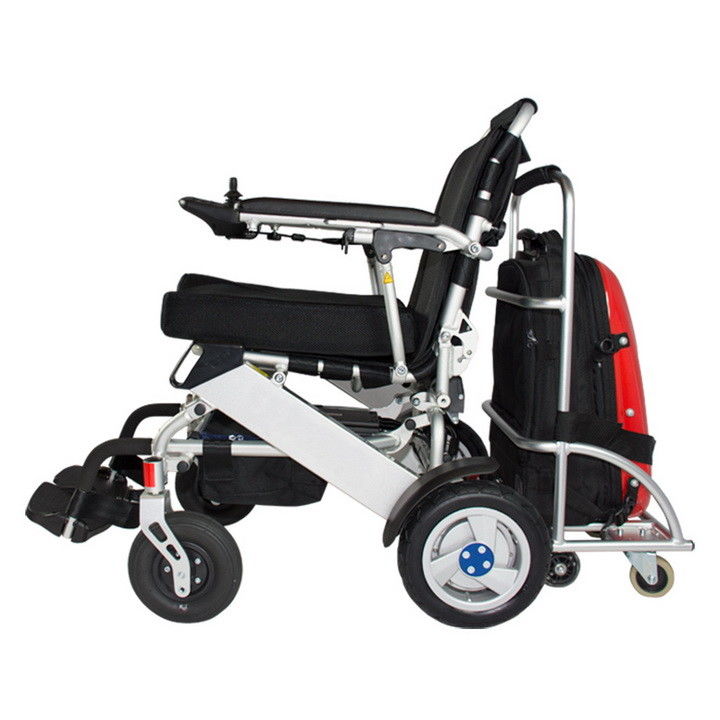

Lightweight Aluminum Foldable Power Electric Wheelchair
Model DYN200 (E08L)
Description
Pingfang ultra-light electric wheelchair is exquisite and exquisite, which is convenient for daily storage and carrying. Pingfang ultra light electric wheelchair adopts hub type brushless motor, which can save electricity, save energy, and have a longer driving range, making your trip more comfortable. One-button quick belt folding, income comfortable, operation brief.The use of brushless motor makes the vehicle's energy conversion efficiency greatly improved, and then enhances the range of the vehicle;Aluminum frame, front and back folding structure;Up and down can be turned up type handrails, adjustable before and after the safety of the handle. Pingfang ultra-light folding electric wheelchair, for your travel, to make a further development!
Every product must go through a series of rigorous process flow, to ensure the accuracy of product processing.we have created a highly efficient assembly line. Our skilled master assemble delicate accessories into a high quality wheelchair. Each production process,we have professional quality control to make sure the product quality qualified,we have done rigorous test for each performance index.If you want to know more information of our wheelchairs,please feel free to contact us.
Specifications you cared most
Model Number | DYN200 (E08L) | Type | Elecctric Wheelchair |
Net Weight | 21.5 KG / 47.40 lbs | Battery Weight | 1.5 KG / 3.31 lbs |
Distance | 18KM/ 11.16mi Or 36KM/22.32mi | Maximun Speed | 6KM/H |
Load Capacity | 125kg/275lb | Charge Time | 5h |
Battery Capacity | 24V 8AH Or 24V 16AH | Motor | 150W *2 brushless motor |
Unfolded(LxWxH) size |
(100-112)x60.5x(81-93)cm / (39.37" - 44.09")*23.82" *(31.89"- 36.61") Length and height can be adjust |
Seat Size |
40*(46-50)*6cm / 15.75"*(18.11" -19.69")*2.36" Seat width can be adjustable |
Folded Size | 60*36.5*71cm / 23.62" *14.37" * 27.95" | Packing Dimension | 67*40.5*82cm / 26.38" * 15.94" * 32.28" |
Front Wheel | 7”*2 PU Tyre or 8”*2 Pneumatic tyres |
Rear Wheel | 10” Solid Wheel |
Joystick | Left, Right or Backrest***** | Cushion | Removable |
Charger Input | 100-240 VAC 50/60Hz | Grade Ability | 10° |
Anti-tip device | Yes | Seat Belt | Yes |
Tools | Yes | Flip-up Armrest | Yes |
Battery type | Lithium Ion Battery | Color | Silver |
* Error and uncertainty in measurement
Advantage
Aluminum electric wheelchairs can be folded very small to put into the car trunk and other narrow space.
Frame N.W 21.5KG / 47.40lbs.
Battery can be quick-relaese, battery weight is 1.5KG / 3.31lbs.
Backrest can be height adjustable.
Backrest can be 3 position ( 3 different angle ) adjustable.
Seat width can be adjusted in 3 sizes.
Joystick can be right & left adjustable.
Motor wheel can 8 inch and 10 inch adjustable.
Footrest length can length adjustable.
Seatrest & backrest cushion can be degree of tightness adjustable for users more comfortable.
Lithium ion battery can be quick-released (removable without any tools).
Seatrest & backrest cushion can be removable for cleaning.
Footrest can be removable.
