Multifunction Foldable Electric Wheelchair
>
|
| Place of Origin | Changshu Jiangsu |
| Brand Name | Pingfang |
| Certification | CE ; ISO13485 |
| Model Number | DYN200 ( E08L ) |

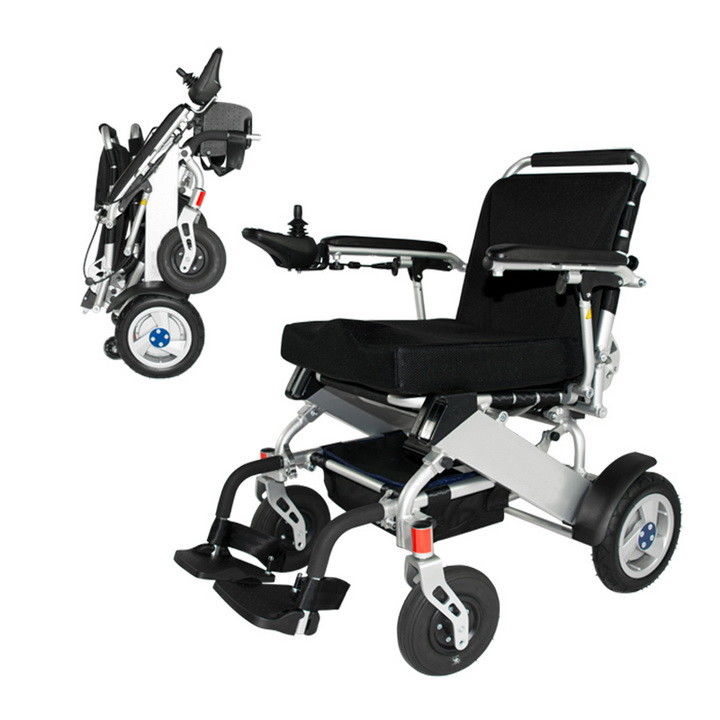

Portable Power Light Weight Folding Foldable Aluminum Alloy Wheelchair
Model DYN200 ( E08L )
Description
Electric wheelchairs could make it easier for people with physical disabilities or the elderly to travel the trip. Make yourself more self-reliant, free and confident, electric wheelchair can bring you a better life.
Manually operated intelligent controller, can drive the wheelchair to complete the forward, backward, steering, standing, lying flat, and other functions of the new generation of intelligent wheelchair.
The product specifications you cared most
| Model Number | DYN200 ( E08L ) | Type | Elecctric Wheelchair |
| Net Weight | 21.5 KG / 47.40 lbs | Battery Weight | 1.5 KG / 3.31 lbs |
| Distance | 18KM / 11.16mi Or 36KM / 22.32mi | Maximun Speed | 6KM/H |
| Load Capacity | 125kg / 275lb | Charge Time | 5h |
| Battery Capacity | 24V 8AH Or 24V 16AH | Motor | 150W * 2 brushless motor |
| Unfolded(LxWxH) size |
(100-112)x60.5x(81-93)cm / (39.37" - 44.09")*23.82" *(31.89"- 36.61") Length and height can be adjust |
Seat Size |
40 * ( 46 - 50 ) * 6cm / 15.75" * (1 8.11" - 19.69" ) * 2.36" Seat width can be adjustable |
| Folded Size | 60*36.5*71cm / 23.62" *14.37" * 27.95" | Packing Dimension | 67 * 40.5 * 82cm / 26.38" * 15.94" * 32.28" |
| Front Wheel | 7” * 2 PU Tyre or 8” * 2 Pneumatic tyres |
Rear Wheel | 10” Solid Wheel |
| Joystick | Left, Right or Backrest***** | Cushion | Removable |
| Charger Input | 100 - 240 VAC 50 / 60Hz | Grade Ability | 10° |
| Anti-tip device | Yes | Seat Belt | Yes |
| Tools | Yes | Flip-up Armrest | Yes |
| Battery type | Lithium Ion Battery | Color | Silver |
* Error and uncertainty in measurement
Packaging
| Individual Package Weight | 30kg / 66.13lb | # of PCS /Master Carton | 1pc |
| Individual Package Dimension (L*W*H) |
67 * 40.5 * 82 cm / 26.38" * 15.94" * 32.28" |
# of 20'' container | 119pcs |
| Packing | Carton All sides of the interior are protected by pearl cotton | # of 40'' container | 238pcs |
* Error and uncertainty in measurement
Advantage
1. Lightweight and Portable, very easy to fold into small size,
2. Easy to put into car boot, You can move it like carrying a luggage
3. Detachable battery make charging easily
4. Different colors are available for people choice,
5. Suitable for using in travel, outdoor, office, supermarket, school, hospital, restaurant.
To our valuable customer
1) Tell us your idea and we will develop the new products for you, and will improve the currently products function, we have strong ability on this and doing the same in our domestic market.
2) Customization(OEM)for our main products is accepted -- Our factory have theQualified Designer team. They can design according to your drawing or pictures,and produce the sample for your checking before order. Please kindly contact our sales staff for quotation.
3) If you find any spare parts are missing or some damaged when un package, we will deliver the new parts with your coming containers or orders.
4) For checking the products quality --- you are warmly welcomed to visit our factory showroom to check the quality before order. Before loading, you can also send QC to check the goods. Or we will check the goods and send photos for your reference.
5) You can order our products together by combined our all products series, and don't hesitate to contact us for any further information.
6) Lead time: Within 30 days for 1*40HQ after receiving deposit. If we have stock and your order quantity is small, we can send it to you right away.
7) For damaged and missing items, we will send replacement after getting related details, such as photo or video. 8) Sample is available for customer to check the quality. Pay the sample fee, refundable after orders.
Thank you!
