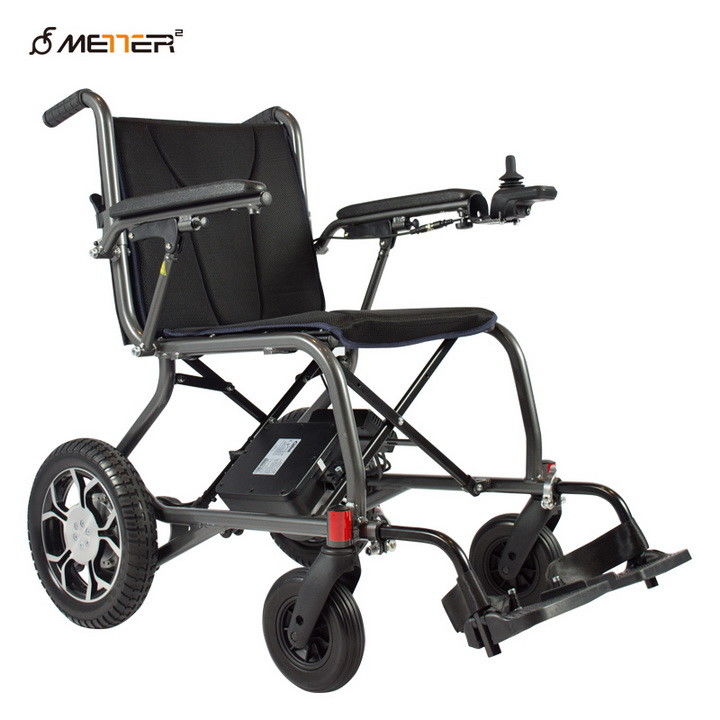

ISO13485 Multifunctional Folding Electric Wheelchair For Disabled
  • ISO13485 Multifunctional Folding Electric Wheelchair For Disabled
  • ISO13485 Multifunctional Folding Electric Wheelchair For Disabled
  • ISO13485 Multifunctional Folding Electric Wheelchair For Disabled
  • ISO13485 Multifunctional Folding Electric Wheelchair For Disabled

ISO13485 Multifunctional Folding Electric Wheelchair For Disabled

Place of Origin Changshu Jiangsu
Brand Name Pingfang
Certification CE ISO13485
Model Number DYN-X4A
Product Details
Name:
Power WheelChair
Material:
Aluminum Alloy
Folding:
Yes
Armrest:
Flip-up
Motor:
150W*2 Brushless
Battery:
7.8AH ; 15.6AH;
Controller:
Brushless
Footrest:
Adjustable And Detachable
Tire:
PU
OEM:
Yes
High Light:

Multifunctional Folding Electric Wheelchair

,

ISO13485 Folding Electric Wheelchair

,

Multifunctional Disabled Electric Wheelchair

Product Description

Comfortable Folding Electric Wheelchair for Disabled


Model DYN-X4A

Description

Our company is committed to providing cost-effective medical products for the elderly and the disabled. The main products are electric wheelchair, manual wheelchair and professional sports wheelchair. So far, our products have been widely recognized in France, Hong Kong China,Malaysia and other countries, and enjoy a high reputation among customers, we are very proud of it.



Advantage
1. Lightweight and Portable, very easy to fold into small size,
2. Easy to put into car boot, You can move it like carrying a luggage,
3. Detachable battery make charging easily,
4. Different colors are available for people choice,
5. Suitable for using in travel, outdoor, office, supermarket, school, hospital, restaurant.



Parameter

Model No. DYN-X4A Type Eco power wheelchair
N.W 21kg / 46.3lbs Weight Capacity 125kg / 275.58lbs
Distance Max 36km (optional) Max speed 6km/h
Charging time 4h Controller Brushless
Motor 150W * 2 Batteries Lithium ion (capacity optional)
Front seat height 505mm / 19.88" Rear seat height 465mm / 18.31"
Armrest height (to ground) 735mm / 28.94" Full Width 580mm / 22.83"
Seat width 455mm / 18" Full Length 750-1120 mm  / 29.53" - 44.09"
Between seat to armrest height 230mm / 9.06" Folding Width 360mm / 14.17"
Joystick Left, Right or Backrest***** Cushion Removable
Charging input 100-240 VAC 50/60Hz Grade Ability
Anti-tip device Yes Seat Belt Yes
Tools Yes Flip-up armrest Yes
Color Optional OEM Yes
H.S code 8713900000 Packing Carton



Service
1. Your inquiry will be replied within 12 hours;
2. We provide OEM servies;
3. We can offer you the sample to check the quality first;
4. All the machine will be inspected strictly before out of factory, we have strict management and quality control systems;
5. We are willing to guarantee the quality of our products, We will provide a different warranty period according to different wheelchair parts, also can provide free wearing parts for the container order, customerscan easily replace the wearing parts in time in their local country.



Regulations of the civil aviation administration of China

According to the regulations of the civil aviation administration of China on strengthening the management of safe air transport of lithium batteries, the lithium content/energy limit of the following levels shall be imposed on the batteries or spare batteries in the equipment carried by passengers,

1. Lithium metal batteries contain no more than 2g of lithium.

2. Lithium ion battery rated energy does not exceed 100wh.

3. Those exceeding 100wh but not exceeding 160wh must be approved by the airline before they can be loaded on the equipment of checked and transported baggage or hand baggage.

4. The new standard has one obvious difference from the past: lithium content is used as the standard of measurement for lithium metal battery, and lithium energy (unit: watt-hour) is used as the standard of measurement for lithium ion battery.

Currently, lithium-ion batteries used in portable electronics or portable power supplies are typically only labeled with the capacity in milliampere-hours (mAh), which is converted from capacity to energy. When the battery is known of the nominal voltage ( V ) and nominal capacity (Ah), energy can be calculated by numerical: wh = V * Ah, nominal voltage (3.6 V or 3.7 V) and nominal capacity are identified on the cell body, if the nominal capacity of battery unit is the mAh, can be divided by 1000 with the mAh value namely Ah (ampere hour).

For example, a certain type of electric wheelchair has two lithium batteries, 12V 10AH * 2, so the energy quantity is: 12V*10AH=120WH. According to the regulations, 120WH lithium batteries are allowed to be carried into the plane.(lithium batteries over 160WH are not allowed on board).
