Collapsible Electric Wheelchair
>
|
| Place of Origin | Changshu Jiangsu |
| Brand Name | Pingfang |
| Certification | CE ; ISO13485 |
| Model Number | DYN200 (E08L) |

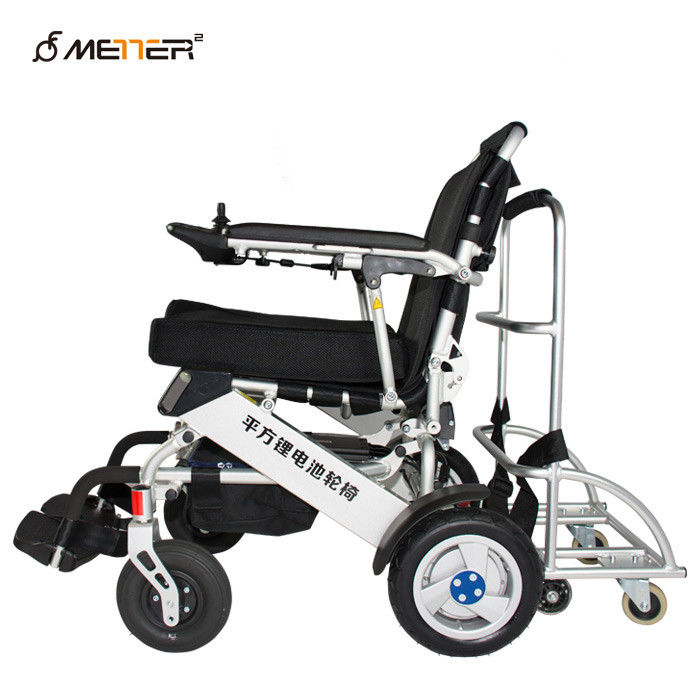

Lightweight Wheelchair And Foldable Power Wheelchair With Lithium Battery
Model DYN200 (E08L)
Description
Featured
1. Raisable armrest Convenient close to the table for eating or reading & Up and down the wheelchair.
2. Foldable footrest Convenient for Up and down the wheelchair.
3. Foldable frame Convenient for transportation and stock.
4. Brushless Motor Enough power, little wear, little noise, low maintenance rate. Suitable for driving on a variety of roads.
5. Lithium Ion Battery Quick-release battery, light weight, convenient to carrying and charging.
6. Electromagnetic braking system Safe and easy to operate, release joystick handle means brake. It is safer not to slide up the slope.
7. Easy to operate Operation depends on the joystick handle. The front, back ,left and right of the control handle represent the direction of the wheelchair. The wheelchair can turn 360 degrees on the spot. Release joystick handle means brake.
Specifications you cared most
| Model Number | DYN200 (E08L) | Type | Elecctric Wheelchair |
| Net Weight | 21.5 KG / 47.40 lbs | Battery Weight | 1.5 KG / 3.31 lbs |
| Distance | 18KM/ 11.16mi Or 36KM/22.32mi | Maximun Speed | 6KM/H |
| Load Capacity | 125kg/275lb | Charge Time | 5h |
| Battery Capacity | 24V 8AH Or 24V 16AH | Motor | 150W *2 brushless motor |
| Unfolded(LxWxH) size |
(100-112)x60.5x(81-93)cm / (39.37" - 44.09")*23.82" *(31.89"- 36.61") Length and height can be adjust |
Seat Size |
40*(46-50)*6cm / 15.75"*(18.11" -19.69")*2.36" Seat width can be adjustable |
| Folded Size | 60*36.5*71cm / 23.62" *14.37" * 27.95" | Packing Dimension | 67*40.5*82cm / 26.38" * 15.94" * 32.28" |
| Front Wheel | 7”*2 PU Tyre or 8”*2 Pneumatic tyres |
Rear Wheel | 10” Solid Wheel |
| Joystick | Left, Right or Backrest***** | Cushion | Removable |
| Charger Input | 100-240 VAC 50/60Hz | Grade Ability | 10° |
| Anti-tip device | Yes | Seat Belt | Yes |
| Tools | Yes | Flip-up Armrest | Yes |
| Battery type | Lithium Ion Battery | Color | Silver |
*Error and uncertainty in measurement
Packaging
| Individual Package Weight | 30kg/66.13lb | # of PCS /Master Carton | 1pc |
| Individual Package Dimension (L*W*H) |
67*40.5*82cm / 26.38" * 15.94" * 32.28" |
# of 20'' container | 119pcs |
| Packing | Carton All sides of the interior are protected by pearl cotton | # of 40'' container | 238pcs |
*Error and uncertainty in measurement
