Brush Motor Light Foldable Electric Wheelchair For Disabled Elderly
  • Brush Motor Light Foldable Electric Wheelchair For Disabled Elderly
  • Brush Motor Light Foldable Electric Wheelchair For Disabled Elderly
  • Brush Motor Light Foldable Electric Wheelchair For Disabled Elderly
  • Brush Motor Light Foldable Electric Wheelchair For Disabled Elderly

Brush Motor Light Foldable Electric Wheelchair For Disabled Elderly

Place of Origin Changshu Jiangsu
Brand Name Pingfang
Certification CE ISO13485
Model Number F308
Product Details
Maximum Speed:
6km/h
Motor:
Brushless Motor 150W*2
Material:
Aluminum Alloy
Load Capacity:
100 KG / 220.46 Lb
Type:
Electric Wheelchair
Function:
Walking Helper For The Disabled Or Elder People
Applicable People:
Disabled Or Elderly
H.S Code:
8713900000
High Light:

Brush Motor Foldable Electric Wheelchair

,

Elderly Foldable Electric Wheelchair

,

Brush Motor Folding Power Wheelchair

Product Description

Brush Motor Light Foldable Electric Wheelchair

Model:F 308



Description

PF Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "PF" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. PF wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.



The product specifications you cared most

Net Weight with 1 standard battery pack 22kg (48.5 lbs)
Max Speed 6 km/hr (3.7 miles/hr)
Maximum Seat Capacity 100kg (220 lbs)
Seat Width 45cm (17.7”) between armrests
Seat Depth 45cm (17.7”)
Seat Height From Ground (Front) 49cm (19.3”)
Seat Height From Ground (Back) 47cm (18.5”)
Turning Radius 75cm (29.5”)
Folded Size L X H X W 37cm x 71cm x 56.5cm (14.6” X 28” X 22”)
Opened Size 93cm x 87.5cm x 56.5cm (36.7” X 34.4” X 22”)
Packing Size 36.5cm x 78.5cm x 66cm (14.4” X 31” X 26”)
Max Distance / Full Charge ~15km with 1 battery (15% less in cold weather)
~30km with Optional 2nd batttery
Charge Time (for 1 battery) 4.5hours
Slope Capability 10˚
Battery Type Soft Pack Polymer Lithium Ion Battery
Motor Type Latest Brushless Motor
Motor Power 150W x 2
Front Wheel 7”
Rear Wheel 8”
Frame Material Quality Aluminium Alloy
Rear Tire Type Rigid PU tyre

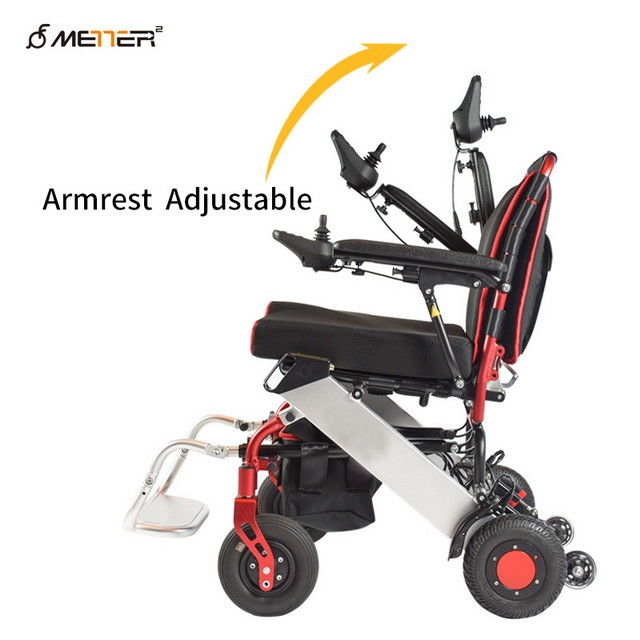

Armrest Raisable
Footrest Foldable
Backrest Foldable

* Error and uncertainty in measurement



Wheelchair Details

Folding electric wheelchairs are generally use of lightweight compact lithium battery, designed to be small, unique frame, can be folded into a small convenient storage, so travel by plane, high-speed rail, cruise ships can be carried out, and in the process of transportation connection folding electric wheelchair can play a more useful role.
