Brushless Motor 180Wx2 Power Wheelchair With Rigid PU Tyre Aluminum Alloy
  • Brushless Motor 180Wx2 Power Wheelchair With Rigid PU Tyre Aluminum Alloy
  • Brushless Motor 180Wx2 Power Wheelchair With Rigid PU Tyre Aluminum Alloy
  • Brushless Motor 180Wx2 Power Wheelchair With Rigid PU Tyre Aluminum Alloy
  • Brushless Motor 180Wx2 Power Wheelchair With Rigid PU Tyre Aluminum Alloy

Brushless Motor 180Wx2 Power Wheelchair With Rigid PU Tyre Aluminum Alloy

Place of Origin Changshu Jiangsu
Brand Name Pingfang
Certification CE ISO13485
Model Number F309
Product Details
Type:
Electric Wheelchair
Material:
Aluminum Alloy
Controller:
Brushless Controller
Battery:
Lithium Ion Battery
Applicable People:
Disabled Or Elderly
Motor:
Brushless Motor 180W*2
Maximum Speed:
6km/h
H.S Code:
8713900000
High Light:

Brushless Motor Battery Wheelchair

,

180Wx2 Power Wheelchair

,

Rigid PU Tyre Battery Wheelchair

Product Description

Brushless Motor Power Wheelchair Aluminum Alloy

High Quality Aluminum Alloy Lithium Battery Brushless Motor Power Wheelchair

Model: F309



Company information

Portable foldable electric wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "PF" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. PF wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.



The product specifications you cared most

Net Weight with 1 standard battery pack 24kg (53 lbs)
Max Speed 6 km/hr (3.7 miles/hr)
Maximum Seat Capacity 100kg (220 lbs)
Seat Width 48cm (19”) between armrests
Seat Depth 450cm (17.7”)
Seat Height From Ground (Front) 49cm (19.3”)
Seat Height From Ground (Back) 47cm (18.5”)
Turning Radius 75cm (29.5”)
Folded Size L X H X W 35cm x 73cm x 58cm (13.8” X 28.7” X22.8”)
Opened Size 94cm x 90cm x 58cm (37” X 35.4” X22.8”)
Packing Size 36.5cm x 78.5cm x 66cm (14.4” X 30.9” X 26”)
Max Distance / Full Charge ~18km with 1 battery (15% less in cold weather)
~36km with Optional 2nd batttery
Charge Time (for 1 battery) 4 hours
Slope Capability 10˚
Battery Type Soft Pack Polymer Lithium Ion Battery
Motor Type Latest Brushless Motor
Motor Power 180W x 2
Front Wheel 7”
Rear Wheel 9”
Frame Material Quality Aluminium Alloy
Rear Tire Type Rigid PU tyre
Armrest Raisable
Footrest Foldable
Backrest Foldable

*Error and uncertainty in measurement

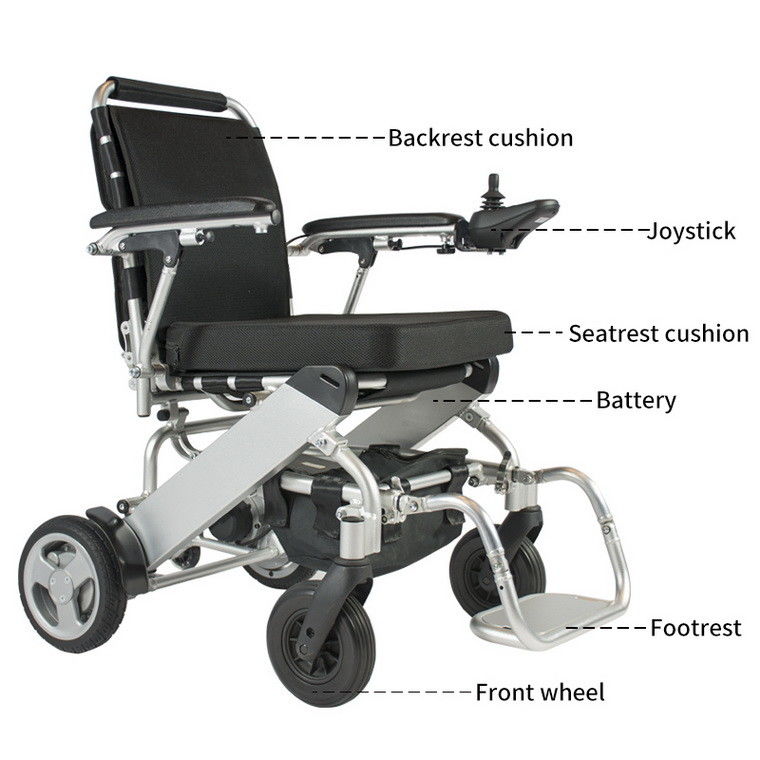

Wheelchair Details

Portable foldable electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.

Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.



Service
1. Your inquiry will be replied within 12 hours;
2. We provide OEM servies;
3. We can offer you the sample to check the quality first;
4. All the machine will be inspected strictly before out of factory, we have strict management and quality control systems;
5. We are willing to guarantee the quality of our products, We will provide a different warranty period according to different wheelchair parts, also can provide free wearing parts for the container order, customerscan easily replace the wearing parts in time in their local country.





Product Advantage

1. Raisable armrest - Convenient close to the table for eating or reading & Up and down the wheelchair.

2. Foldable footrest - Convenient for Up and down the wheelchair.

3. Foldable frame - Convenient for transportation and stock.

4. Brushless Motor - Enough power, little wear, little noise, low maintenance rate.

5. Lithium Ion Battery - Quick-release battery, light weight, convenient to carrying and charging.

6. Electromagnetic braking system - Safe and easy to operate, release joystick handle means brake. It is safer not to slide up the slope.

7. Easy to operate - Operation depends on the joystick handle. The front, back ,left and right of the control handle represent the direction of the wheelchair. The wheelchair can turn 360 degrees on the spot. Release joystick handle means brake.
