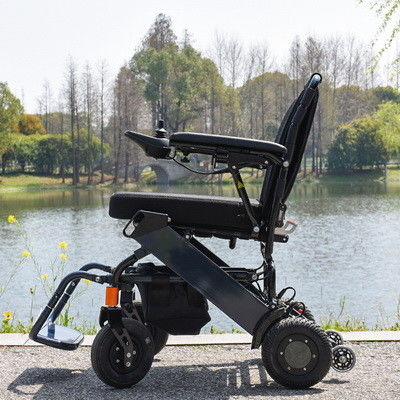

Lightweight Foldable Electric Wheelchair
>
|
| Place of Origin | Changshu Jiangsu |
| Brand Name | Pingfang |
| Certification | CE ISO13485 |
| Model Number | F308 |
Lithium Battery Alu Motorized Power Wheelchair Electric
Lithium Battery Alluminum Motorized Power Wheelchair Electric for Disabled
Model:F 308
Description
The product specifications you cared most
| Net Weight with 1 standard battery pack | 22kg (48.5 lbs) |
| Max Speed | 6 km/hr (3.7 miles/hr) |
| Maximum Seat Capacity | 100kg (220 lbs) |
| Seat Width | 45cm (17.7”) between armrests |
| Seat Depth | 45cm (17.7”) |
| Seat Height From Ground (Front) | 49cm (19.3”) |
| Seat Height From Ground (Back) | 47cm (18.5”) |
| Turning Radius | 75cm (29.5”) |
| Folded Size L X H X W | 37cm x 71cm x 56.5cm (14.6” X 28” X 22”) |
| Opened Size | 93cm x 87.5cm x 56.5cm (36.7” X 34.4” X 22”) |
| Packing Size | 36.5cm x 78.5cm x 66cm (14.4” X 31” X 26”) |
| Max Distance / Full Charge | ~15km with 1 battery (15% less in cold weather) ~30km with Optional 2nd batttery |
| Charge Time (for 1 battery) | 4.5hours |
| Slope Capability | 10˚ |
| Battery Type | Soft Pack Polymer Lithium Ion Battery |
| Motor Type | Latest Brushless Motor |
| Motor Power | 150W x 2 |
| Front Wheel | 7” |
| Rear Wheel | 8” |
| Frame Material | Quality Aluminium Alloy |
| Rear Tire Type | Rigid PU tyre |
| Armrest | Raisable |
| Footrest | Foldable |
| Backrest | Foldable |
* Error and uncertainty in measurement
Wheelchair Details
1. Easy operate with a joystick
2. Light weight, lithium battery
3. Aluminum alloy frame make more strong
4. Alumium alloy for front/Rear wheel
5. Electric & Mechanical brake
6. Easy foldable for storage & transportion
7. Armrest can be turned up, more convenient for disabled up and down.
8. Shock-absorber for the front wheel
Featured
Foldable
Effortlessly fold in just a few seconds to fit your trunk, closet or anywhere just need small space.
Quiet
Electrical appliances are highly compatible. The noise of the motor is low, So in the library and other quiet places can be safely used, will not affect others. Even took part in some calligraphy and painting exhibitions.
Security
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
