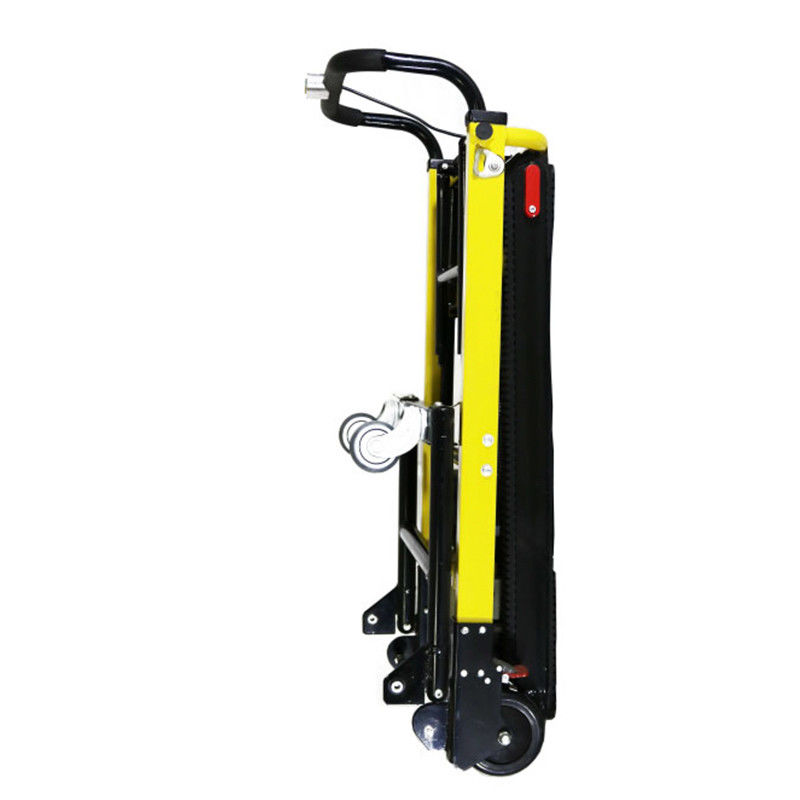

10.2m/Min Aluminum Alloy 160KG Stair Climber Stretcher
  • 10.2m/Min	Aluminum Alloy 160KG Stair Climber Stretcher
  • 10.2m/Min	Aluminum Alloy 160KG Stair Climber Stretcher
  • 10.2m/Min	Aluminum Alloy 160KG Stair Climber Stretcher
  • 10.2m/Min	Aluminum Alloy 160KG Stair Climber Stretcher

10.2m/Min Aluminum Alloy 160KG Stair Climber Stretcher

Place of Origin Changshu Jiangsu
Brand Name Pingfang
Certification CE ISO13485
Model Number A11
Product Details
Type:
Stair Stretcher
Material:
Aluminum Alloy
Application:
Emergency
Folded:
Yes
Net Weight:
29KG / 63.93lbs
Max Capacity:
160KG / 352.74lbs
Climbing Floor:
60-70
Stair Depth:
Conventional Staircases
H.S Code:
94054090
Orginal:
China
MOQ:
10 Pcs
High Light:

Aluminum Alloy Stair Climber Stretcher

,

Aluminum Alloy stair chair stretcher

,

160KG Stair Climber Stretcher

Product Description

Hot Sale Power Cheap Lift Stair Chair Climber Electric With Aluminum Alloy



Model A11



Specification

1. 24V, 120W  brushless motor,three speeds adjustable ,with cover, power system with soft start protection , make battery using time longer , motor and battery service life also longer

2. With LED light, LCD power display

3. Easy operating, it can climb up and down stairs smoothly and steadily by track.

4. It won't glide or fall down when stop on the stairs, very safe and reliable.

5. Circuit is inside the pipe, waterproof, long life time, motor is no noise during operating.

6. Made of aluminum alloy, foldable, compact and lightweight.

7. It can fit different size wheelchair by adjust the width of the universal trolley.

8. During transport ,the side wings is detachable, the trolley is foldable.



The product specifications you cared most

Opening Size

1070*520*1740 mm/

42.13"*20.47"*68.50"

Folding Size

1200*520*220mm/

47.24"*20.47"*8.66"

N.W 29KG / 63.93lbs G.W 33KG / 72.75lbs
Wheel Front:Ф75mm  Rear : Ф125mm Max Capacity 160KG/ 352.74lbs
Speed 10.2m/min Stair Depth Conventional Staircases
Angle Platform Size 900*900mm / 35.43"*35.43" Safety Braking System Yes
Authorized Operating Chip Lithium Batteries  Climbing Mode Caterpillar Band
Noise ≤50 db Motor 24V 120W
Battery 24V 13AH Charger Time 4-5h





Details

1. electric stair climbing wheelchair Mainly used for hospitals, emergency centers ,fire, emergency ambulance, family connecting wheelchairs.
2. The main use of high-rise buildings transfer of patients up and down stairs,
only need one person use.
3. A unique track structure, convenient and safe when chair stair lift down the stairs.
4. The materials of electric stair climbing wheelchair is made of high-strength aluminum alloy.



Service

1.We are wheelchair factory so our price will be the most competitive
2.We have profession engineer teams so our products ensure high quality and safety
3.We has integrated research and development and sales team so we will solve problems in 24 hrs
4.We accept customized LOGO and mass printing

10.2m/Min	Aluminum Alloy 160KG Stair Climber Stretcher 0
