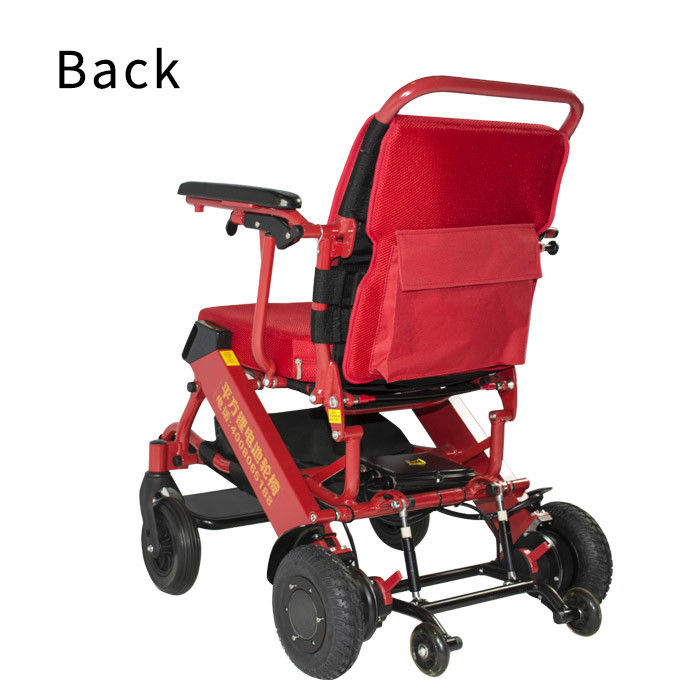

Lightweight Foldable Electric Wheelchair
>
|
| Place of Origin | Changshu, Jiangsu |
| Brand Name | PingFang |
| Certification | CE, ISO13485 |
| Model Number | DYN30A (D07) |
Strong Frame, Patented Design, Comfortable Drive, Lightweight Portable Brushless Folding Electric Power Wheelchair
Model DYN30A ( D07 )
Description
Pingfang ultra-light electric wheelchair is exquisite and exquisite, occupying only 0.14m3 after folding, which is convenient for daily storage and carrying. Pingfang ultra-light electric wheelchair is a brand new technology, solar energy low-carbon concept in the electric wheelchair breaking the use of the concept of economic and environmental protection, ultra-light portable design makes this model become one of the world's most lightweight electric wheelchair, in use can be charged at any time.
Pingfang ultra light electric wheelchair adopts hub type brushless motor, which can save electricity, save energy, and have a longer driving range, making your trip more comfortable. One-button quick belt folding, income comfortable, operation brief.The use of brushless motor makes the vehicle's energy conversion efficiency greatly improved, and then enhances the range of the vehicle;Aluminum frame, front and back folding structure;Up and down can be turned up type handrails, adjustable before and after the safety of the handle.
The product specifications you cared most
| Model Number | DYN30A (D07) | Type | Elecctric Wheelchair |
| Net Weight (without Battery) | 18 KG / 39.68 lbs | Battery Weight | 1.5 KG / 3.31 lbs |
| Distance | 15KM/ 9.3mi Or 30KM/18.64mi | Maximun Speed | 6KM/H |
| Load Capacity | 100kg/220lb | Charge Time | 5h |
| Battery Capacity | 24V 8AH Or 24V 16AH | Motor | 150W *2 brushless motor |
| Unfolded(LxWxH) size | 87.5x57x87.5cm | Seat Size | 40*44*6cm |
| Folded Size | 57*29*69cm | Packing Dimension | 65*36*77cm |
| Front Wheel | 7”*2 PU Tyre or 8”*2 Pneumatic tyres |
Rear Wheel | 8” Rubber wheel filled with PU |
| Joystick | Left, Right or Backrest***** | Cushion | Removable |
| Charger Input | 100-240 VAC 50/60Hz | Grade Ability | 10° |
| Anti-tip device | Yes | Seat Belt | Yes |
| Tools | Yes | Flip-up Armrest | Yes |
| Battery type | Lithium Ion Battery | Color | Yellow, Black, Red, Silver**** |
* Error and uncertainty in measurement
Packaging
| Individual Package Weight | 25kg/55lb | # of PCS /Master Carton | 1pc |
| Individual Package Dimension (L*W*H) | 65*36*77cm | # of 20'' container | 162pcs |
| Packing | Carton All sides of the interior are protected by pearl cotton | # of 40'' container | 324pcs |
* Error and uncertainty in measurement
Advantage
1. Lightweight: only weighs 20kg
2. Small folded size: 57.0 x 30.0 x 73.0 CM, easy to put in the car trunk or co-pilot's seat.
3. Quick and easy folding procedure: 5-second operation.
4. Adjustable armrest and footrest: offer you a comfortable life
5. 7" shock absorbing front casters
6. Detachable and washable backrest and seat cushion
7. Tiny-Turn Radius for tight corners, makes you ride more stable
Optional
Headrest
More comfortable neck and head rest for users.
The orthopaedic legrest
Legrest angle and length adjustable, can be easily removable. People who have leg injuries or cannot bend their legs are better able to use wheelchairs. It is also convenient and comfortable for users to rest their legs.
