Lightweight Foldable Electric Wheelchair
>
|
| Place of Origin | Changshu, Jiangsu |
| Brand Name | PingFang |
| Certification | CE, ISO13485 |
| Model Number | DYN30A (D07) |
Lightweight Portable Brushless Folding / Foldable Electric Power Wheelchair
Model DYN30A ( D07 )
Description
Our company is committed to providing cost-effective medical products for the elderly and the disabled. The main products are electric wheelchair, manual wheelchair and professional sports wheelchair. So far, our products have been widely recognized in France, Hong Kong China,Malaysia and other countries, and enjoy a high reputation among customers, we are very proud of it.
Electric wheelchair, different from the traditional manual wheelchair, is an upgrading one which is equipped with the high-powered actuating device, intelligent manipulation device, lithium batteries and so on.Electric wheelchair is a high-tech product which possesses the intelligent controller that can complete the actions as forward, reverse, turning around. One key easy folding, can be carried as lugguage.
Aluminum alloy has high specific strength, light weight, good fluidity, strong filling capacity, good corrosion resistance and low melting point. It is widely used in locomotive parts, medical equipment and other industries.
Lightweight aluminum transit wheelchair.It can be put into trunk easily for its foldable lightweight aluminum alloy frame.Aluminum frame enables the wheelchair ultra-lightweight, only weighs 18.5kg.
The product specifications you cared most
| Model Number | DYN30A (D07) | Type | Elecctric Wheelchair |
| Net Weight (without Battery) | 18 KG / 39.68 lbs | Battery Weight | 1.5 KG / 3.31 lbs |
| Distance | 15KM/ 9.3mi Or 30KM/18.64mi | Maximun Speed | 6KM/H |
| Load Capacity | 100kg/220lb | Charge Time | 5h |
| Battery Capacity | 24V 8AH Or 24V 16AH | Motor | 150W *2 brushless motor |
| Unfolded(LxWxH) size | 87.5x57x87.5cm | Seat Size | 40*44*6cm |
| Folded Size | 57*29*69cm | Packing Dimension | 65*36*77cm |
| Front Wheel | 7”*2 PU Tyre or 8”*2 Pneumatic tyres |
Rear Wheel | 8” Rubber wheel filled with PU |
| Joystick | Left, Right or Backrest***** | Cushion | Removable |
| Charger Input | 100-240 VAC 50/60Hz | Grade Ability | 10° |
| Anti-tip device | Yes | Seat Belt | Yes |
| Tools | Yes | Flip-up Armrest | Yes |
| Battery type | Lithium Ion Battery | Color | Yellow, Black, Red, Silver**** |
*Error and uncertainty in measurement
Packaging
| Individual Package Weight | 25kg/55lb | # of PCS /Master Carton | 1pc |
| Individual Package Dimension (L*W*H) | 65*36*77cm | # of 20'' container | 162pcs |
| Packing | Carton All sides of the interior are protected by pearl cotton | # of 40'' container | 324pcs |
*Error and uncertainty in measurement

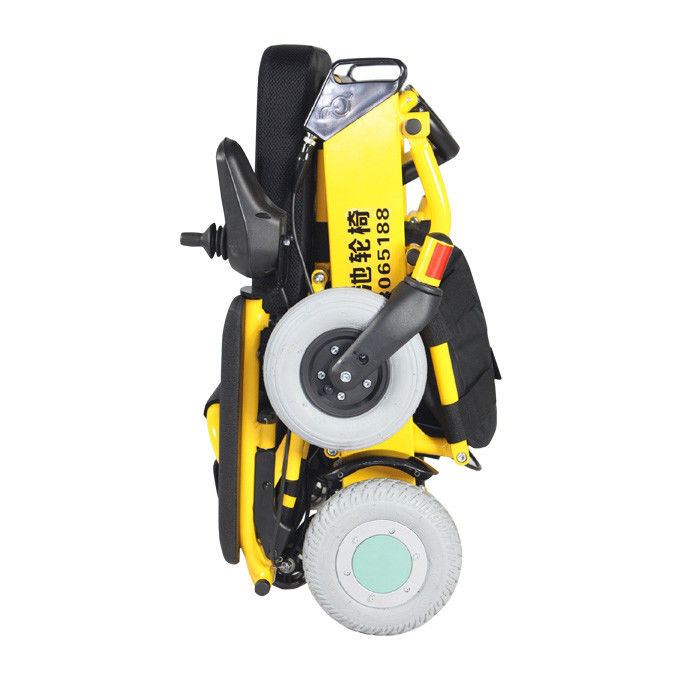

Foldable and Ultra Light
Effortlessly fold in just a few seconds to fit your trunk, closet or anywhere just need small space. The whole Frame N.W just 18 kg.
Flip-up Armrest
Power wheelchair with flip up armrest. It is very convenient for users to get up and down the wheelchair, and the armrest can be lifted when approaching the table.
Comfortable
Use breathable cushion comfortable and can be removable for cleaning. And The tightness of the seat back cushion can be adjusted according to the user's demand. Users will not feel tired after sitting for a long time.
Electrical appliances are highly compatible. The noise of the motor is low, So in the library and other quiet places can be safely used, will not affect others.
Security
Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
Advantage
1. Lightweight: only weighs 20kg
2. Small folded size: 57.0 x 30.0 x 73.0 CM, easy to put in the car trunk or co-pilot's seat.
3. Quick and easy folding procedure: 5-second operation.
4. Adjustable armrest and footrest: offer you a comfortable life
5. 7" shock absorbing front casters
6. Detachable and washable backrest and seat cushion
7. Tiny-Turn Radius for tight corners, makes you ride more stable
