Changshu Pingfang wheelchair CO.,Ltd
Mail: cherrywheelchair@163.com TEL: 00-86-15776738688
Home > Products > Lightweight Foldable Electric Wheelchair >

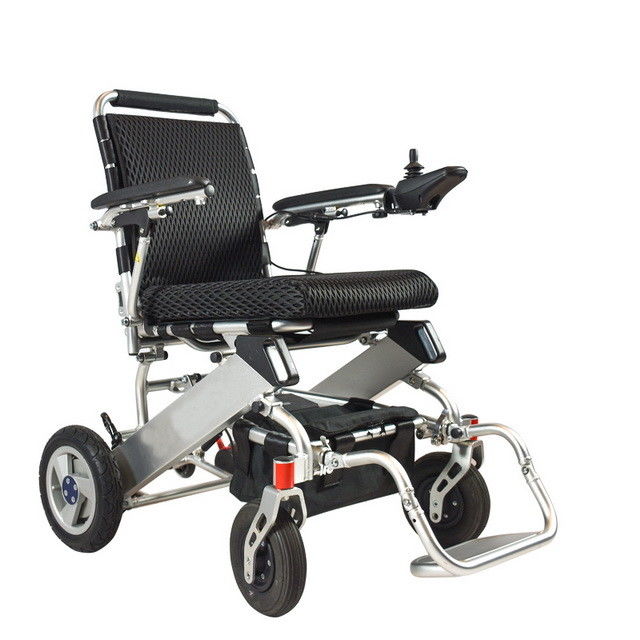

Brushless Motor Lithium Electric Power Chair 120KG Load
  • Brushless Motor Lithium Electric Power Chair 120KG Load
  • Brushless Motor Lithium Electric Power Chair 120KG Load
  • Brushless Motor Lithium Electric Power Chair 120KG Load
  • Brushless Motor Lithium Electric Power Chair 120KG Load

Brushless Motor Lithium Electric Power Chair 120KG Load

Place of Origin Changshu, Jiangsu
Brand Name PingFang
Certification CE, ISO13485
Model Number F310
Product Details
Type:
Lightweight Foldable Electric Wheelchair
Material:
Aluminum Alloy
Battery:
Lithium Ion Battery
Motor:
250W*2 Brushless Motor
Load Capacity:
120 KG ; 264.55 Lb
Frame N.W:
22.5 KG; 49.6 Lb
Maximum Speed:
6km/h
Applicable People:
Disabled Or Elderly
Color:
Silver
Surface:
Environmental Protection Coating
High Light:

6KM/H Electric Power Chair

,

120KG Load Electric Wheel Chair

,

Brushless Motor Electric Power Chair

Product Description

Brushless Motor Lithium Electric Power Chair

Model F310



Description

We are Changshu Pingfang Wheelchair Co., Ltd. We are wheelchair manufacturer. We mainly produce light weight and can folding very small electric wheelchair. We have a professional design team, procurement team, production team, sales team and after-sales team.
Our foldable electric scooter power wheelchair is extremely convenient due to its compact size and ability to be folded for transport in just about any vehicle: a Car, Truck, SUV. It is also convenient enough to take on an Train, Bus, Cruise Ship or Airplane. The chair can go just about anywhere - Indoors or Outdoors.
We also have many optional accessorie for meet the different needs of different customers. Functions not only can be met at any time, but also can be combined according to customer requirements.



The product specifications you cared most

Model Number F310 Type Elecctric Wheelchair
Net Weight  22.5KG / 49.6 lbs Battery Weight 1.5 KG / 3.31 lbs
Distance 15KM/ 9.3mi Or 40KM/24.85mi Maximun Speed 6KM/H
Load Capacity 120kg/264.55lb Charge Time 5h
Battery Capacity  24V 8AH Or 24V 16AH Motor 250W *2 brushless motor
Unfolded(LxWxH) size 114x60x92cm Seat Size 34*37*6cm
Folded Size 69*34*60cm Packing Dimension 65*36*77cm
Front Wheel  8*2 Pneumatic tyres Rear Wheel 10” Rubber wheel filled with PU
Joystick Left, Right or Backrest***** Cushion Removable
Charger Input 100-240 VAC 50/60Hz Grade Ability 10°
Anti-tip device Yes Seat Belt Yes
Tools Yes Flip-up Armrest Yes
Battery type Lithium Ion Battery Color  Silver

*Error and uncertainty in measurement



Regulations of the civil aviation administration of China

According to the regulations of the civil aviation administration of China on strengthening the management of safe air transport of lithium batteries, the lithium content/energy limit of the following levels shall be imposed on the batteries or spare batteries in the equipment carried by passengers,

1. Lithium metal batteries contain no more than 2g of lithium.

2. Lithium ion battery rated energy does not exceed 100wh.

3. Those exceeding 100wh but not exceeding 160wh must be approved by the airline before they can be loaded on the equipment of checked and transported baggage or hand baggage.

4. The new standard has one obvious difference from the past: lithium content is used as the standard of measurement for lithium metal battery, and lithium energy (unit: watt-hour) is used as the standard of measurement for lithium ion battery.

Currently, lithium-ion batteries used in portable electronics or portable power supplies are typically only labeled with the capacity in milliampere-hours (mAh), which is converted from capacity to energy. When the battery is known of the nominal voltage ( V ) and nominal capacity (Ah), energy can be calculated by numerical: wh = V * Ah, nominal voltage (3.6 V or 3.7 V) and nominal capacity are identified on the cell body, if the nominal capacity of battery unit is the mAh, can be divided by 1000 with the mAh value namely Ah (ampere hour).

For example, a certain type of electric wheelchair has two lithium batteries, 12V 10AH * 2, so the energy quantity is: 12V*10AH=120WH. According to the regulations, 120WH lithium batteries are allowed to be carried into the plane.(lithium batteries over 160WH are not allowed on board).

Advantage

Foldable and Ultra Light

Effortlessly fold in just a few seconds to fit your trunk, closet or anywhere just need small space. The whole Frame N.W just 18 kg.

Flip-up Armrest

Power wheelchair with flip up armrest. It is very convenient for users to get up and down the wheelchair, and the armrest can be lifted when approaching the table.

Comfortable

Use breathable cushion comfortable and can be removable for cleaning. And The tightness of the seat back cushion can be adjusted according to the user's demand. Users will not feel tired after sitting for a long time.

Electrical appliances are highly compatible. The noise of the motor is low, So in the library and other quiet places can be safely used, will not affect others.

Security

Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took off.
