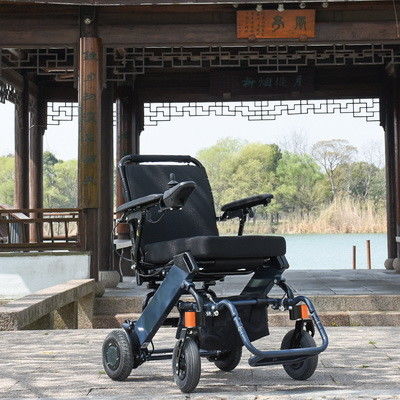

Lithium Battery Alu Motorized Power Wheelchair Electric For Disabled
  • Lithium Battery Alu Motorized Power Wheelchair Electric For Disabled
  • Lithium Battery Alu Motorized Power Wheelchair Electric For Disabled
  • Lithium Battery Alu Motorized Power Wheelchair Electric For Disabled
  • Lithium Battery Alu Motorized Power Wheelchair Electric For Disabled

Lithium Battery Alu Motorized Power Wheelchair Electric For Disabled

Place of Origin Changshu Jiangsu
Brand Name Pingfang
Certification CE ISO13485
Model Number F308
Product Details
Motor:
Brushless Motor 150W*2
Material:
Aluminum Alloy
Maximum Speed:
6km/h
Type:
Electric Wheelchair
Function:
Walking Helper For The Disabled Or Elder People
Load Capacity:
100 KG / 220.46 Lb
Applicable People:
Disabled Or Elderly
H.S Code:
8713900000
MOQ:
10 Pcs
High Light:

6 Km/Hr Motorized Power Wheelchair

,

100KG Load Foldable Motorized Wheelchair

,

PU Tyre Motorized Power Wheelchair

Product Description

Lithium Battery Alluminum Motorized Power Wheelchair Electric for Disabled

Model:F 308



Description

PF Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "PF" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. PF wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.

​The chair is controlled with an easy-to-uick thse joystat can be placed on either the left or right hand side depending on the user's preference. It is designed with a 8-inch rear-wheel drive system to overcome tough terrains such as hills and ramps and provides a smooth ride throughout.



The product specifications you cared most

Net Weight with 1 standard battery pack 22kg (48.5 lbs)
Max Speed 6 km/hr (3.7 miles/hr)
Maximum Seat Capacity 100kg (220 lbs)
Seat Width 45cm (17.7”) between armrests
Seat Depth 45cm (17.7”)
Seat Height From Ground (Front) 49cm (19.3”)
Seat Height From Ground (Back) 47cm (18.5”)
Turning Radius 75cm (29.5”)
Folded Size L X H X W 37cm x 71cm x 56.5cm (14.6” X 28” X 22”)
Opened Size 93cm x 87.5cm x 56.5cm (36.7” X 34.4” X 22”)
Packing Size 36.5cm x 78.5cm x 66cm (14.4” X 31” X 26”)
Max Distance / Full Charge ~15km with 1 battery (15% less in cold weather)
~30km with Optional 2nd batttery
Charge Time (for 1 battery) 4.5hours
Slope Capability 10˚
Battery Type Soft Pack Polymer Lithium Ion Battery
Motor Type Latest Brushless Motor
Motor Power 150W x 2
Front Wheel 7”
Rear Wheel 8”
Frame Material Quality Aluminium Alloy
Rear Tire Type Rigid PU tyre
Armrest Raisable
Footrest Foldable
Backrest Foldable

* Error and uncertainty in measurement



Wheelchair Details

1. Easy operate with a joystick

2. Light weight, lithium battery

3. Aluminum alloy frame make more strong

4. Alumium alloy for front/Rear wheel

5. Electric & Mechanical brake

6. Easy foldable for storage & transportion

7. Armrest can be turned up, more convenient for disabled up and down.

8. Shock-absorber for the front wheel



FAQ
Q1. May I have a sample order for this electric wheelchair? And what is your MOQ?
A: Yes, we welcome sample order to test and check quality. MOQ 1PC electric wheelchair for sample checking is available.



Q2. What about the lead time?
A: We have sample in stock, usually one 20 GP container (about 100 pcs) delivery time is 30 days.



Q3. Is that possible to print my logo on electric wheelchair ?
A: Yes. we accept OEM/ODM orders. It is available to print logo on electric wheelchair. Please send your HD logo before our production and will confirm with u until get your satisfaction for the sample.



Q4. Do you offer guarantee for the electric wheelchair?
A: 48 months for wheelchair frame,24 months for brushless motor, 18months for lithium battery and joystick controller and 6 months for other parts.



Q5. Are you trading company or manufacturer?
A: Welcome to our factory if you willing to. We are professional foldable and lightweight wheelchair, knee walker scooter and electric scooter Manufacturer, we have much more experience in global market. we can ensure products quality, The pre-sale and after sale service, every spare parts can be sent when you need to replace.
